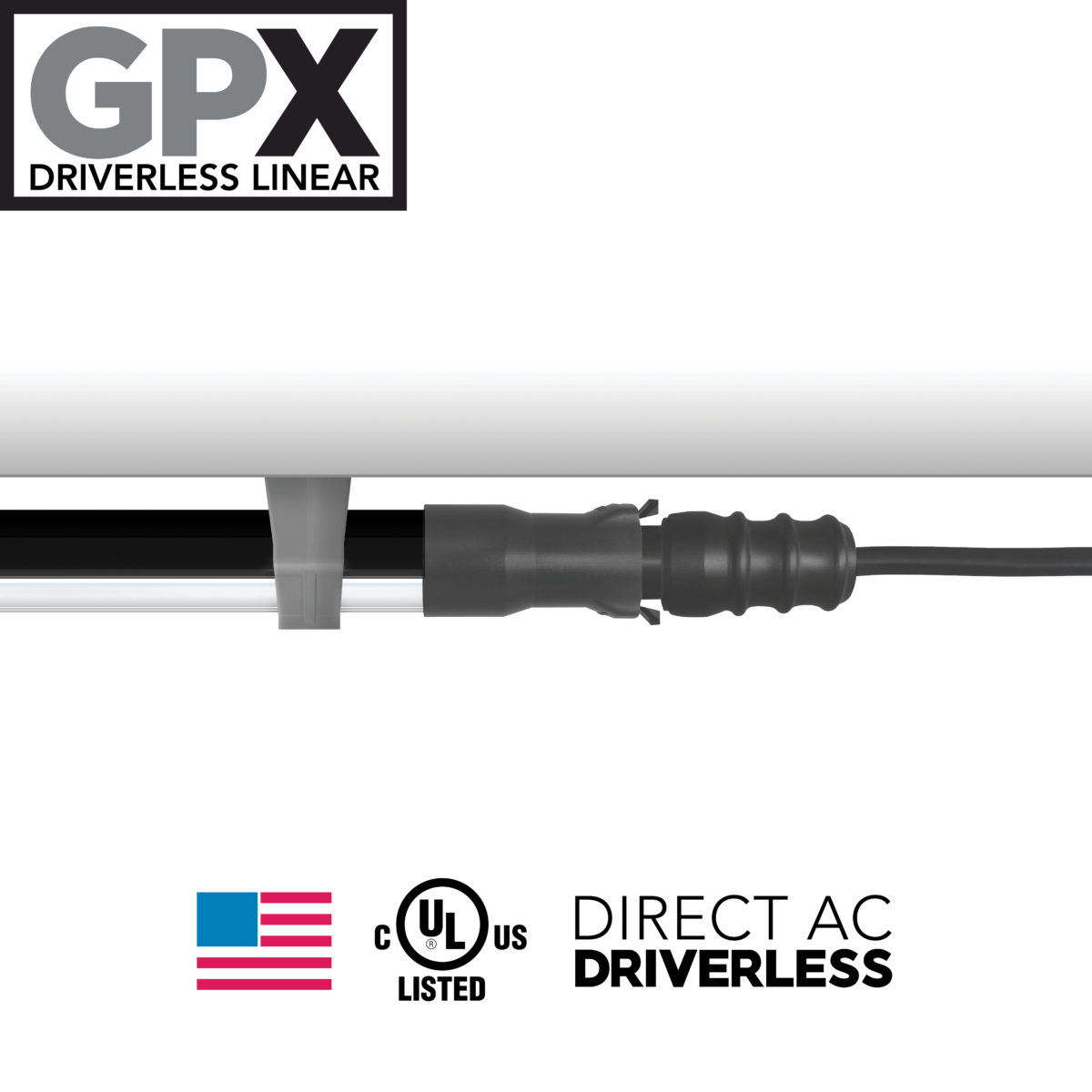

GENERAL PURPOSE LINEAR LED LUMINAIRE

Product Features

Maintenance-Free Driverless Design

Connects directly to AC line voltage without an LED driver or electrolytic capacitors, for extreme reliability and lifetime. Requires zero maintenance.

Easy to Install Quick-Connect Cabling

Convenient push-and-click connectors and cabling make GPX Series fixtures easy to install and daisy chain.

Coextruded Copolyester/Aluminum Housing

Our patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heatsinking characteristics for long lifetime.

Superior Chemical & UV Resistance

Seamless polymeric outer shell provides IP67 ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.

Performance Summary

Delivered Light Output: Up to 4,800 Lumens – 600 Lumens/Ft
Efficacy: 130 LPW
CRI: Typical 85 CRI
CCT: 5000K, 4000K & 3500K
Lifetime: Designed to last 75,000 Hours at 25°C
Warranty: 5 Years (See ggled.net for Terms)
Mounting: Ceiling or Wall
Dimensions: Length Varies, Width 1.25” x Height 1.75”
Protection Class: IP67
Dimming: Yes, TRIAC Dimmable
Voltage: 120 VAC or 277 VAC Input
Maximum Run Length: Refer to spec sheet

ACCESSORIES

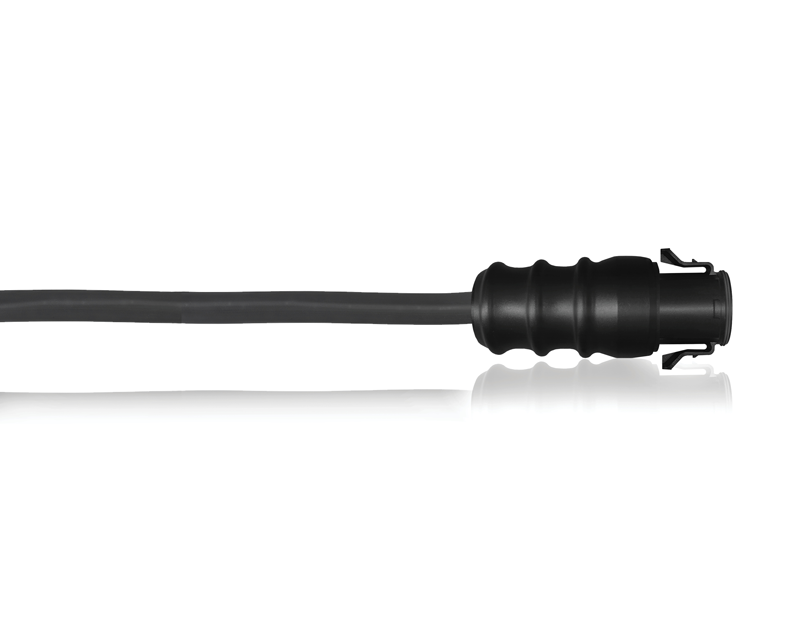

CONNECTION CABLES

Cable Type Length Wire
GPX-JMP-1 Jumper 1ft 18 AWG SJTW
GPX-JMP-2 Jumper 2ft 18 AWG SJTW
GPX-JMP-4 Jumper 4ft 18 AWG SJTW
GPX-JMP-8 Jumper 8ft 18 AWG SJTW
GPX-JMP-10 Leader Cable 10ft 18 AWG SJTW
GPX-JMP-25 Leader Cable 25ft 18 AWG SJTW

*No Jumper Cable Required on End-to-End Connection

MOUNTING HARDWARE

Mounting Hardware Description
GPX-MNT-NM Non-Metalic Quick Latch
GPX-MNT-SS Stainless Steel Bolt Latch
