Product Features

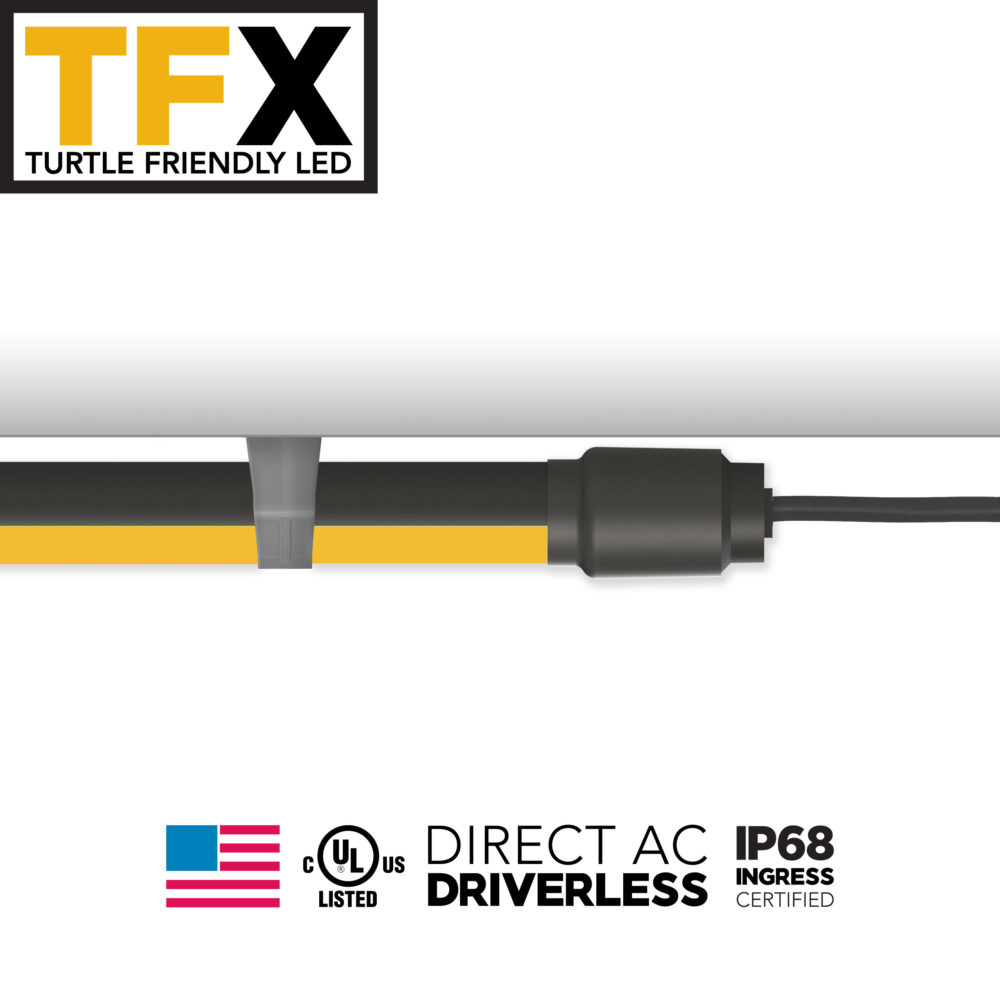

Turtle Friendly Design

Dual switching amber/white design allows convenient switching between turtle safe amber light and standard white lighting for off season use.

Compact Low-Profile

1” round patented linear housing provides a remarkably slim low profile allowing installation in almost any application. The design is lightweight, incredibly easy to mount and creates a modern, sleek result.

Maintenance-Free Driverless

Connects directly to AC line voltage without an LED driver or electrolytic capacitors, for extreme reliability and lifetime. Requires zero maintenance.

Superior Waterproof Chemical & UV Resistance

Seamless polymeric outer shell provides IP68 ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications

Performance Summary

Delivered Light Output: Amber: 800 Lumens (590nM Long Wavelength
Wattage: 16W
Lifetime: Designed to last 100,000 Hours at 25°C
Warranty: 5 Years (See ggled.net for Terms)
Mounting: Ceiling or Wall; Optional Shielding Available
Dimensions: Length Varies, Width 1.25” x Height 1.75” Mounted
Protection Class: IP68
Dimming: Yes, TRIAC Dimmable
Voltage: 120 VAC or 277 VAC Input
Lens: Copolyester, Diffused to Limit Glare & Evenly Spread Light Output
Ambient Temperature: -40°C to 55°C
