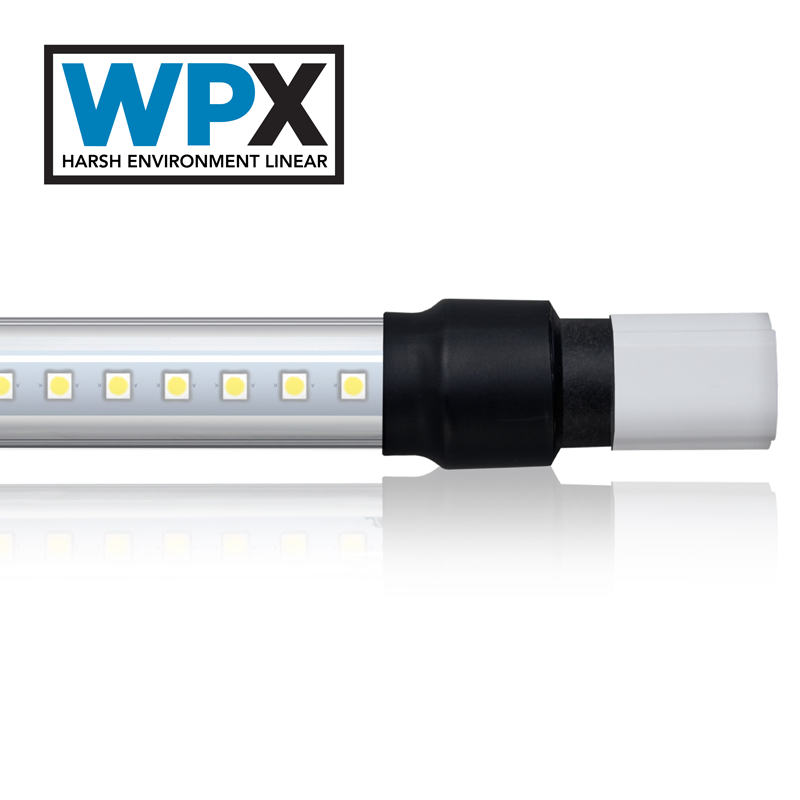

WPX Waterproof LED Light for reliable energy efficient lighting in harsh environments


Product Features

Easy to Install Quick-Connect Cabling

Convenient push-and-click connectors and cabling make WPX Series fixtures easy to install and daisy chain

Embedded Aluminum Heatsink

Embedded aluminum heatsink provides ample cooling for a long lifetime and allows the fixture to operate in cold and hot weather environments

Superior Chemical & UV Resistance

Seamless polymeric outer shell provides IP68/IP69K ingress waterproof protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications

Performance Summary

Delivered LED Light Output: Up to 12,000 Lumens
Efficacy: Up to 140 LPW
CRI: Typical 85 CRI
CCT: 5000K & 4000K
Lifetime: Designed to last 100,000 Hours at 25°C
Warranty: 5 Years (See ggled.net for Terms)
Mounting: Ceiling or Wall
Dimensions: Length Varies, Width 1.25” x Height 1.75”
Run Length: Up to 72’ of luminaires (not including jumpers)



Our IP69K rated Waterproof LED lights are perfect for Car Wash Lighting in Tunnels, Self-Service Bays, Vacuum areas and Detailing spaces.
G&G Waterproof LED lights for the food processing industry built with non-toxic, corrosion resistant materials for frequent hosedowns.
G&G LED lights are design for the highly corrosive environment found in tunnels, transit platforms, pedestrian walkways, and bridgess



Cable Type Length Wire
WPX-JMP-1 Jumper End-to-End 14 AWG SJOOW
WPX-JMP-2 Jumper 2ft 14 AWG SJOOW
WPX-JMP-4 Jumper 4ft 14 AWG SJOOW
WPX-JMP-8 Jumper 8ft 14 AWG SJOOW
WPX-JMP-12 Jumper 12ft 14 AWG SJOOW
WPX-JMP-16 Jumper 16ft 14 AWG SJOOW
WPX-JMP-20 Jumper 20ft 14 AWG SJOOW
WPX-LDR-8 Leader Cable 8ft 14 AWG SJOOW
WPX-LDR-25 Leader Cable 25ft 14 AWG SJOOW


Power Supply Max Output Enclosure Voltage
WPX-PSU-40 40W IP67 120-277 VAC
WPX-PSU-80 80W IP67 120-277 VAC
WPX-PSU-120 120W IP67 120-277 VAC
WPX-PSU-240 240W IP67 120-277 VAC
WPX-PSU-320 320W IP67 120-277 VAC
WPX-PSU-600 600W IP67 120-277 VAC


Mounting Hardware Description
WPX-MNT-NM Non-Metalic Quick Latch
WPX-MNT-SS Stainless Steel Bolt Latch
