The WPX Color is a linkable 1″ low-profile luminaire that provides dramatic color effects within harsh environments, such as a car wash. The seamless housing provides unparalleled chemical resistance and IP68/69K waterproof ingress protection.
Single Color Harsh Environment LED Luminaire
High Output, Focused Color Effects
Available in red, green, blue or amber. Available with a standard 120º beam or narrow 20º spot optics for focused color concentration.
Utilize a Single Power Supply Unit to Energize Multiple Fixtures
Daisy chain multiple luminaries using only one power supply, making it simple to mount around an arch for an immersive color experience.
Easy to Install Quick-Connect Cabling
Secure, waterproof low-voltage push-and-click cabling allows for a, easy, quick and clean installation.
Extreme Protection Against Environmental Factors
Seamless outer shell provides IP68 / IP69K waterproof protection and is specialized for superior corrosion resistance to withstand the chemicals within the car wash environments. IK07 rated for impact resistance.
Made in the USA
All of G&G’s products are engineered, tested, manufactured, assembled and shipped from one facility in Clifton Park, New York with industry-leading turnaround times.

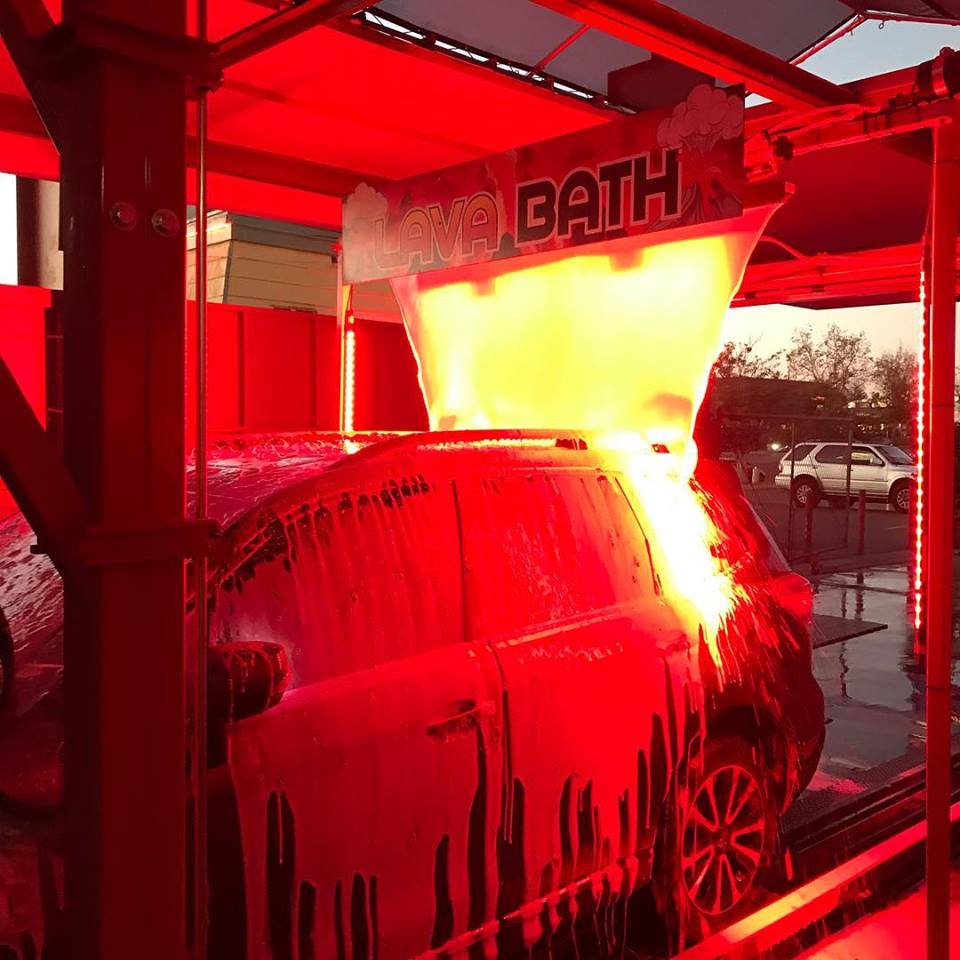

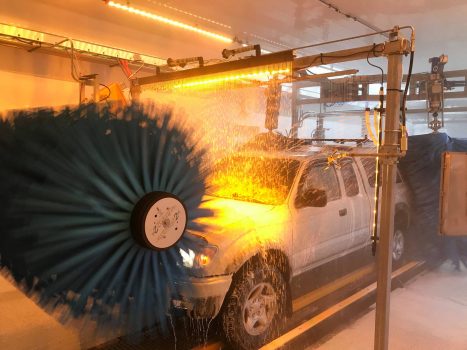

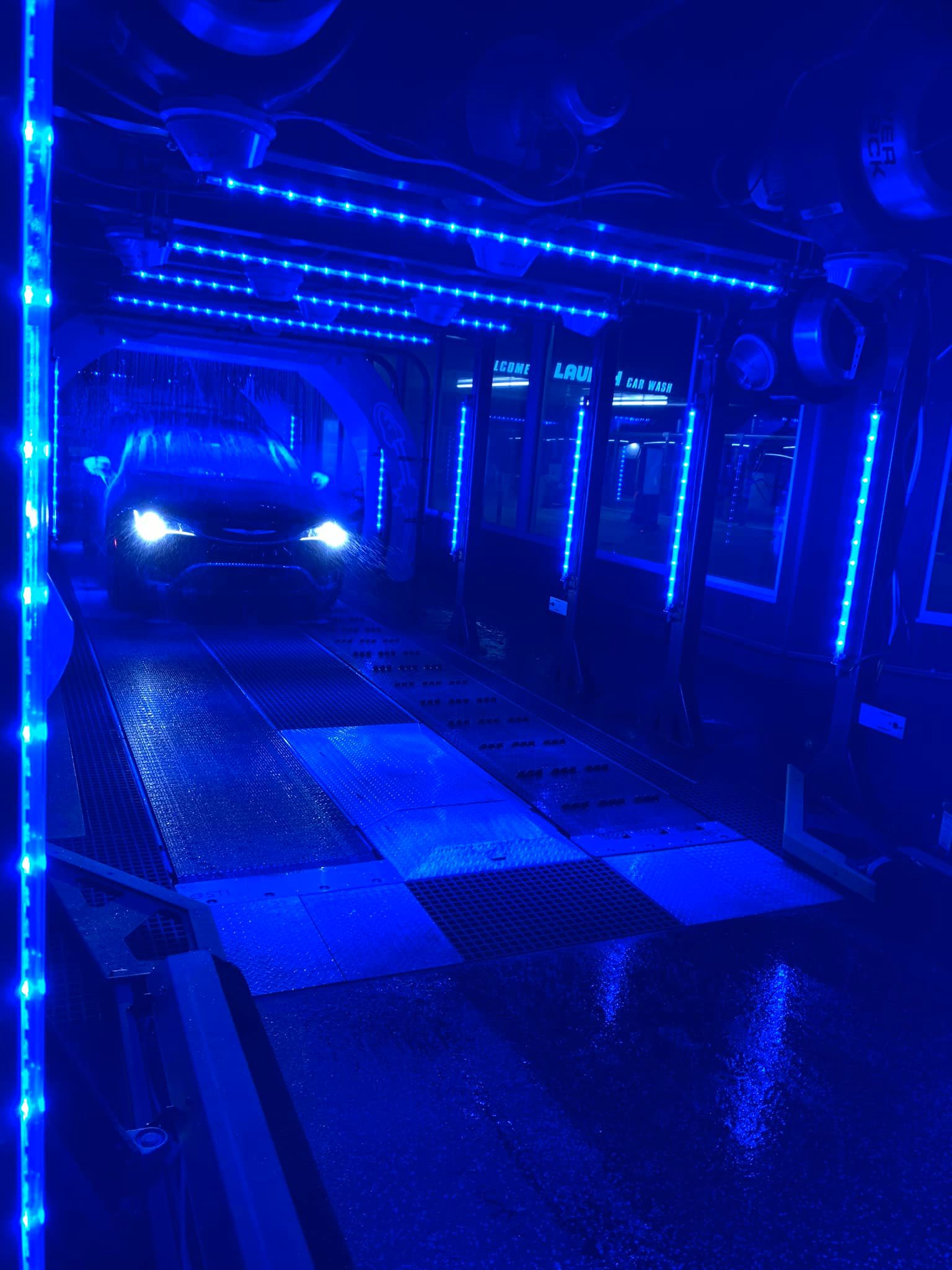

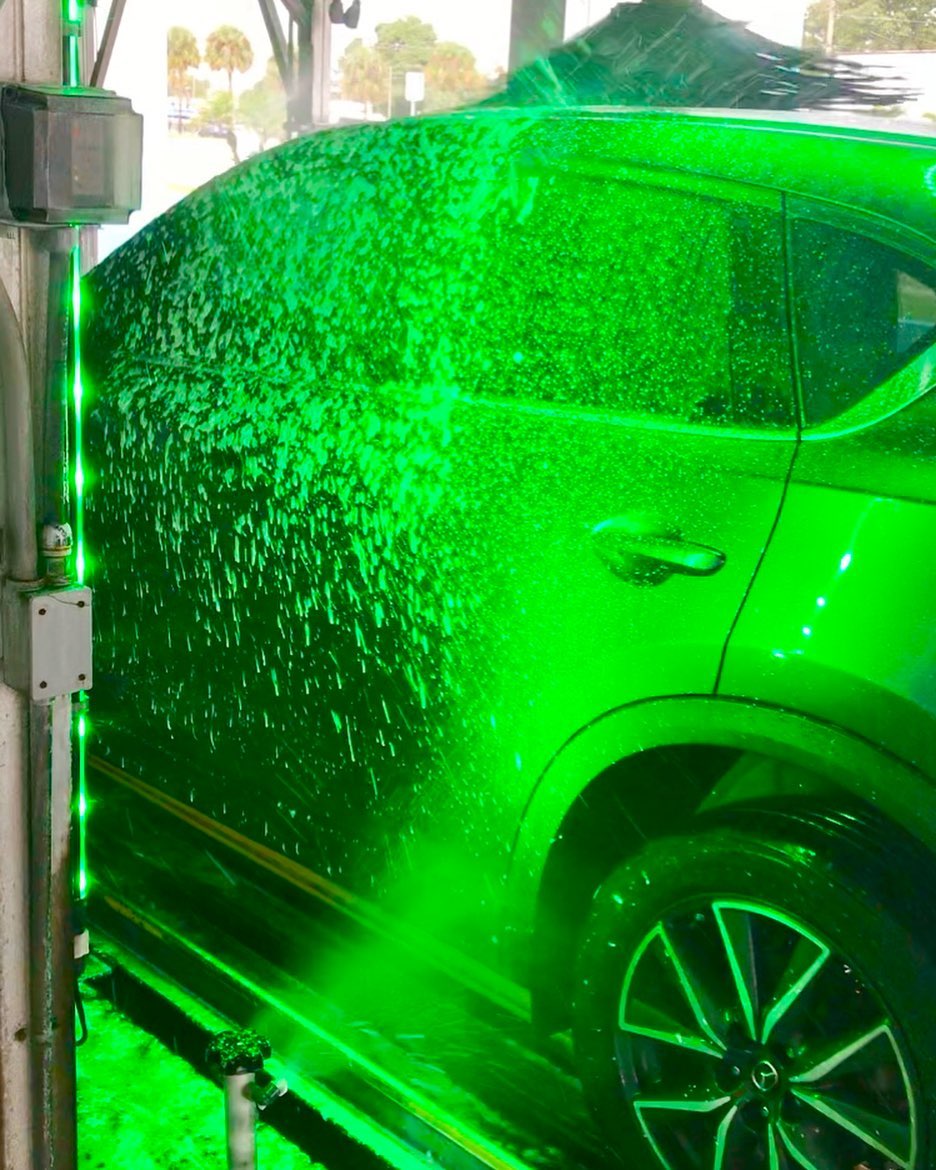

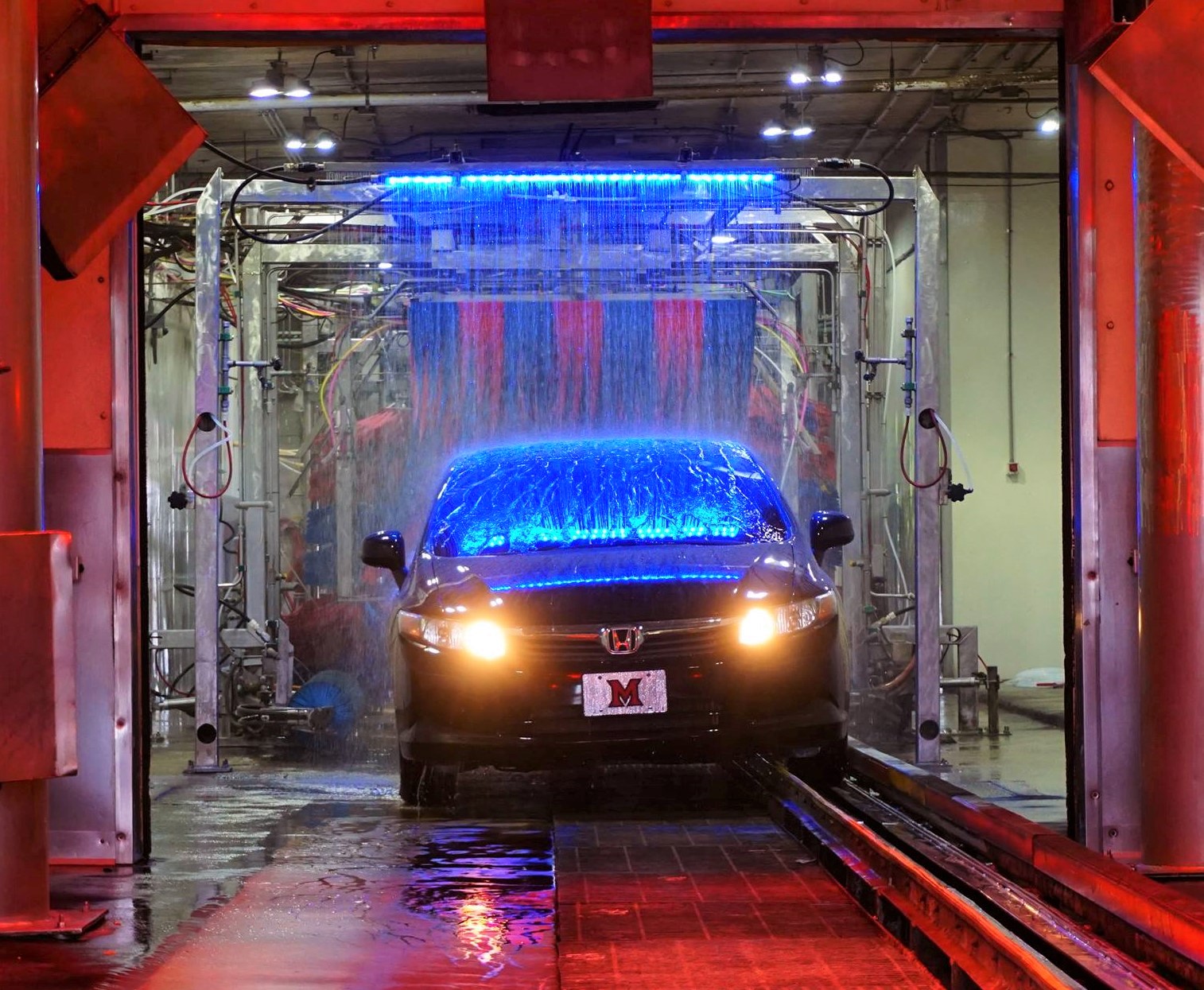

WPX Color Gallery

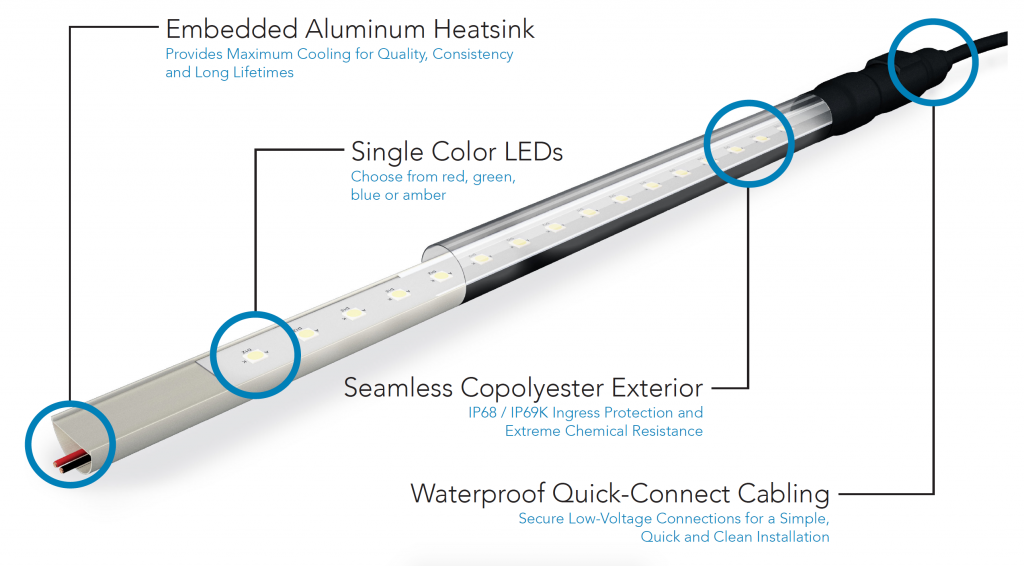

Product Design
Specifications

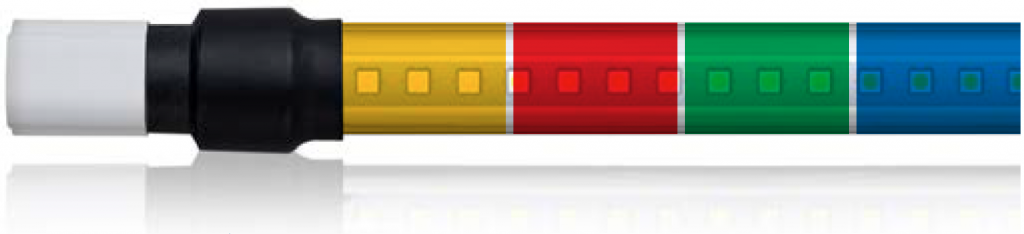

Color Options
Red, Green, Amber, Blue
Optics
120º or 20º Focused
Warranty
3 Years (see ggled.net for terms)
Mounting
Ceiling or Wall
Dimensions
Length Varies, Width 1.25” x Height 1.75”
Data: Power Requirements
| Length & Output | Fixture Watts | Fixtures Supported per Power Supply | |||||
| PSU-80 | PSU-120 | PSU-240 | PSU-320 | PSU-480 | PSU-600 | ||
| WPX8 - COLOR WPX6 - COLOR WPX4 - COLOR | 100 W 100 W 50 W | 0 0 1 | 1 1 2 | 2 2 4 | 2 2 4 | 4 4 7 | 5 5 9 |
