The new EDGE LED lighting solution is perfect for the outside perimeter of your car wash building. It packs a powerful illuminating punch within a compact fixture. With over 10 years of experience with UV coatings for lighting, G&G’s expertise is what gives this luminaire an edge over the rest to withstand long-term outdoor exposure.
EDGE: Outdoor Color LED Luminaire
Stand out from the crowd when you discover your EDGE.
EDGE’s attention-grabbing brilliance will not only dazzle customers driving by, it’s a unique way to continuously market your site. Easily create stunning light shows that support holidays, site branding, community events, and more to increase traffic.
Digitally Controllable
RGB Segments
Each two-foot segment is designed to be independently controlled providing the end user with a seamless linear or color-changing show with dynamic lighting effects.
Ease of
Installation
Lightweight, 1” low profile housing is easy to mount while convenient push-and-click connectors and cabling provide simple daisy chaining for long runs of light (up to 100’) on a single power source.
Convenience
of Control
Choose between two convenient control methods: having the power of G&G’s ColorWash built right in, or your own DMX controller
Durable Where
It Matters Most
Seamless diffused polymeric outer shell provides IP68/IP69K ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.
Proudly Made
in the USA
All of G&G’s products are engineered, tested, manufactured, assembled and shipped from one facility in Clifton Park, New York with industry-leading turnaround times.

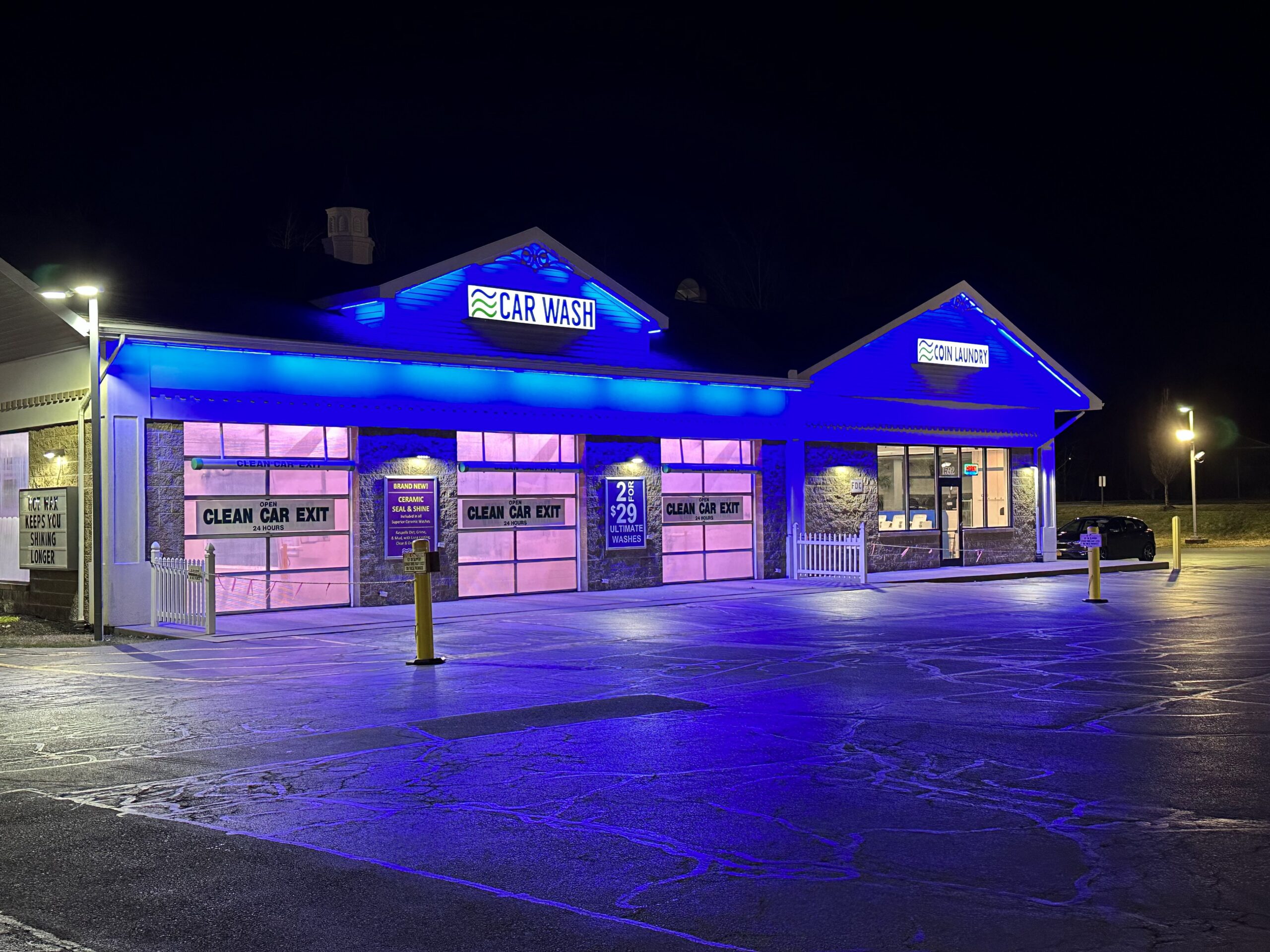

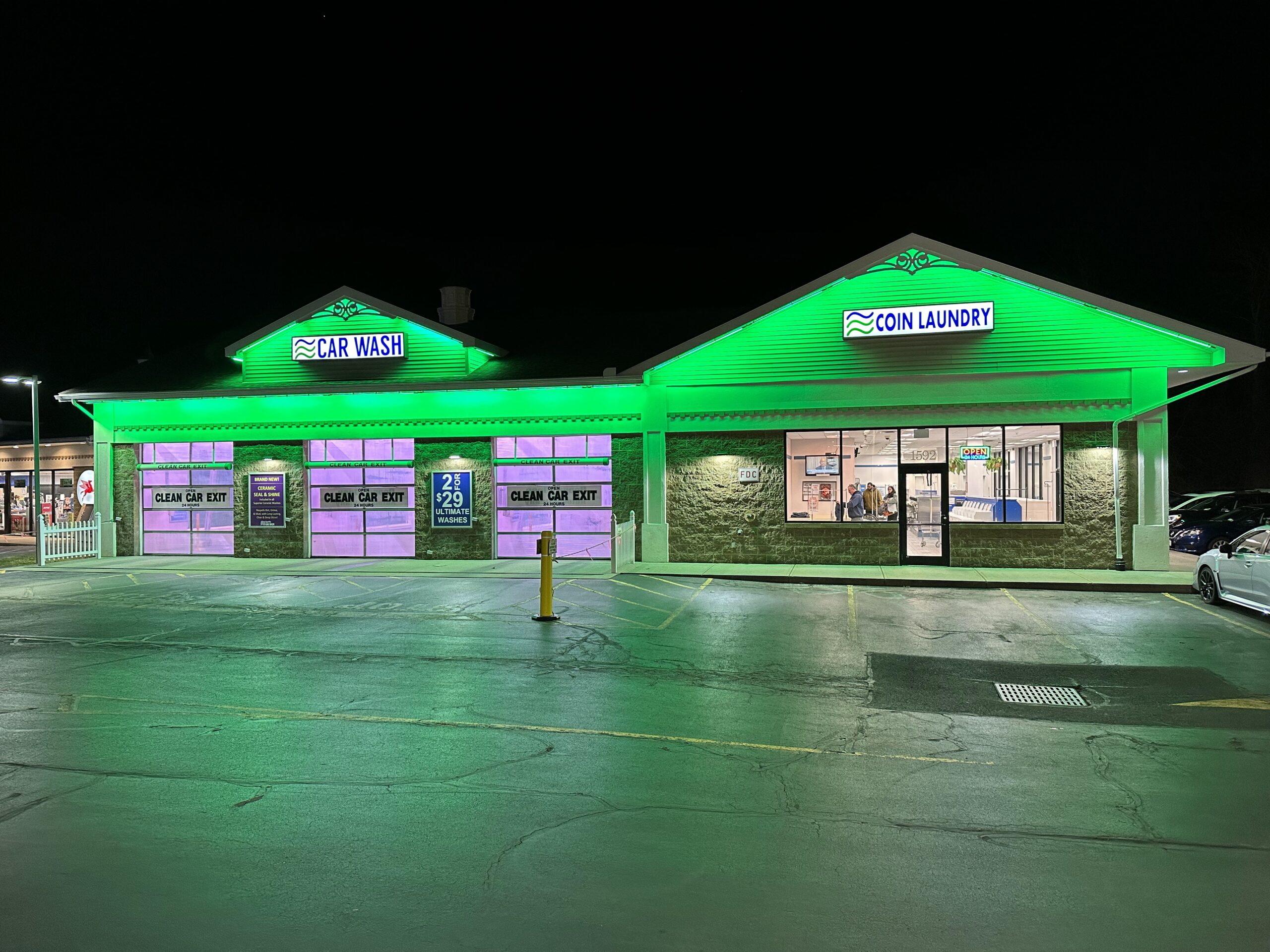

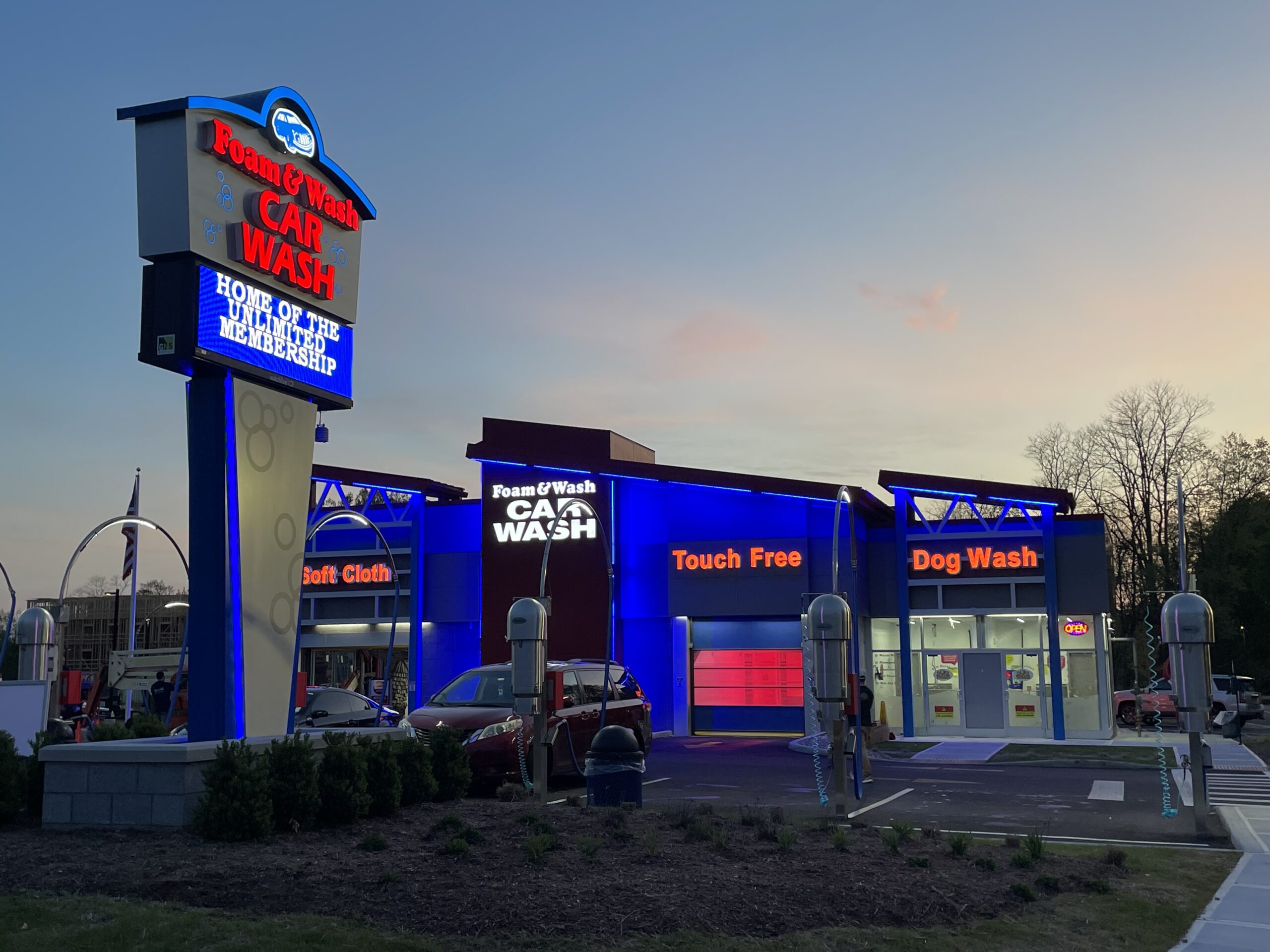

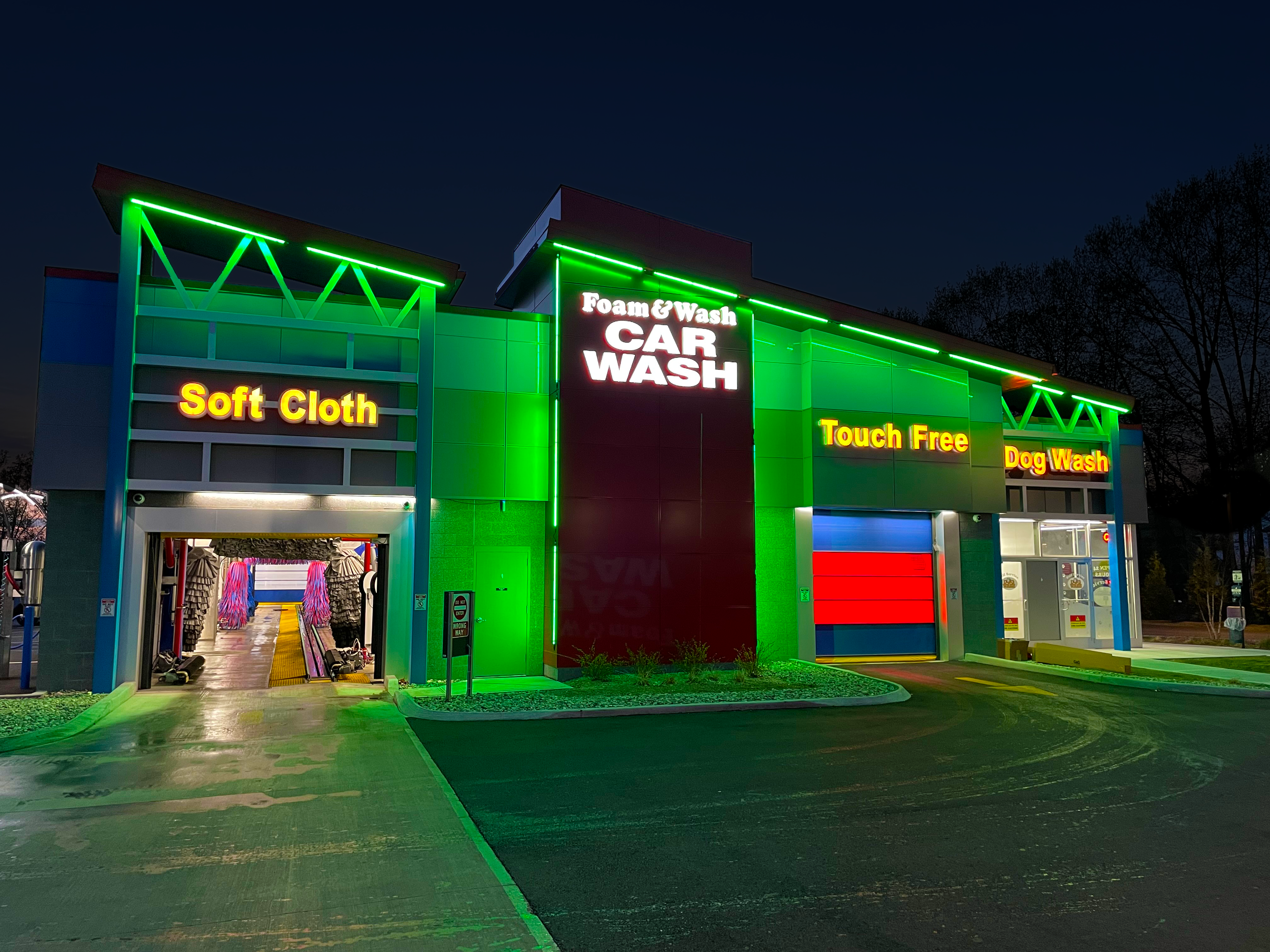

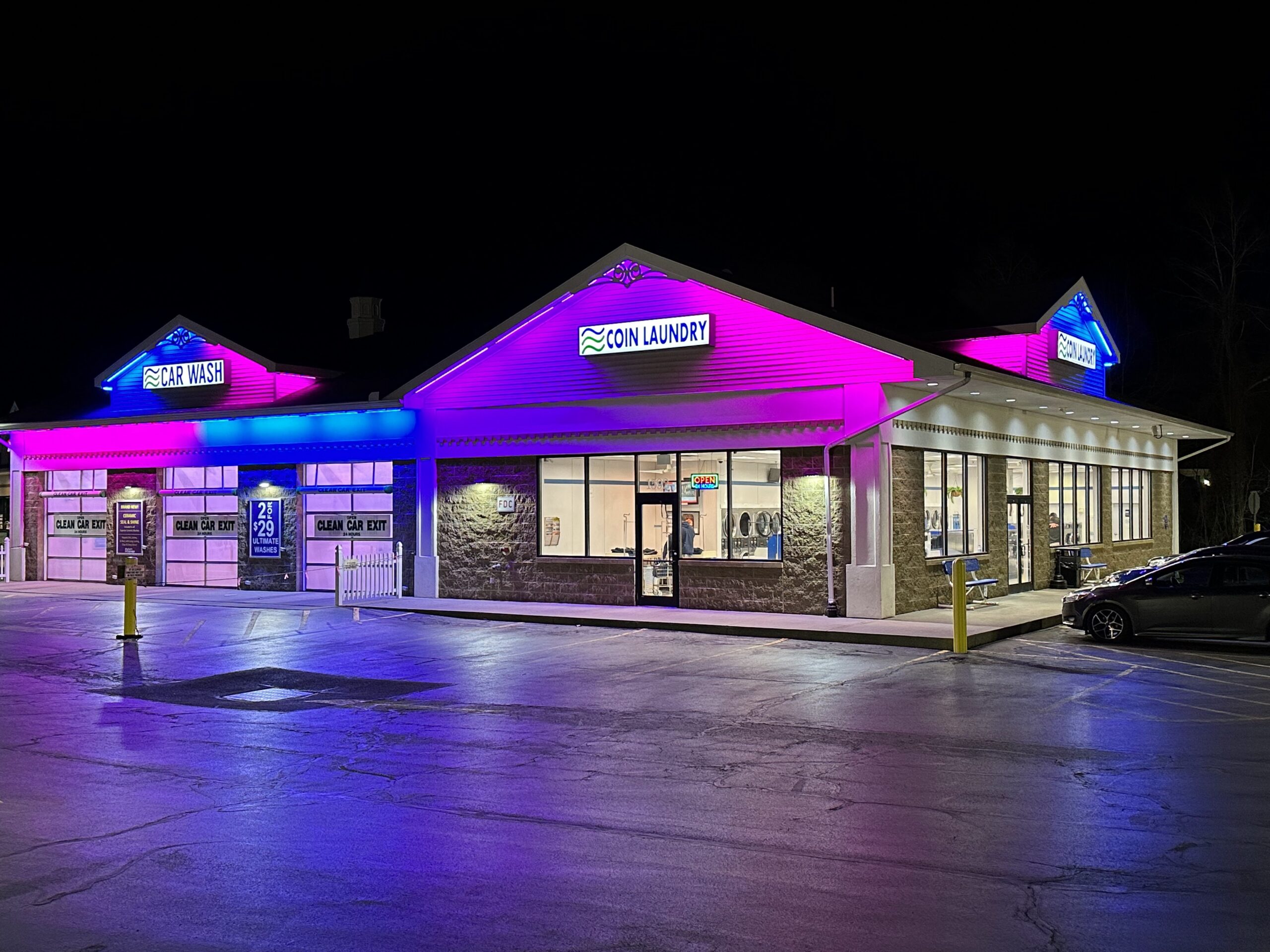

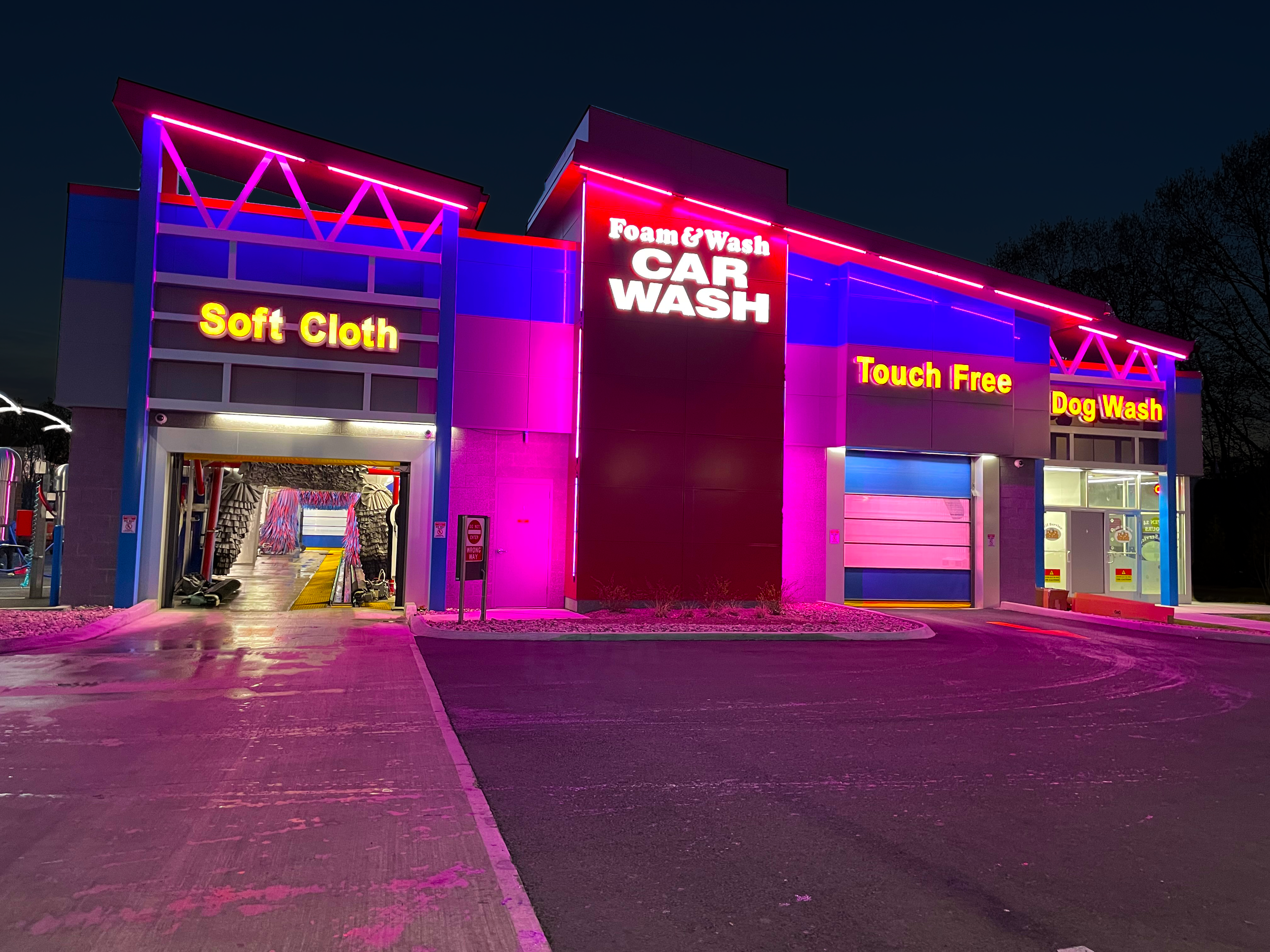

Gallery

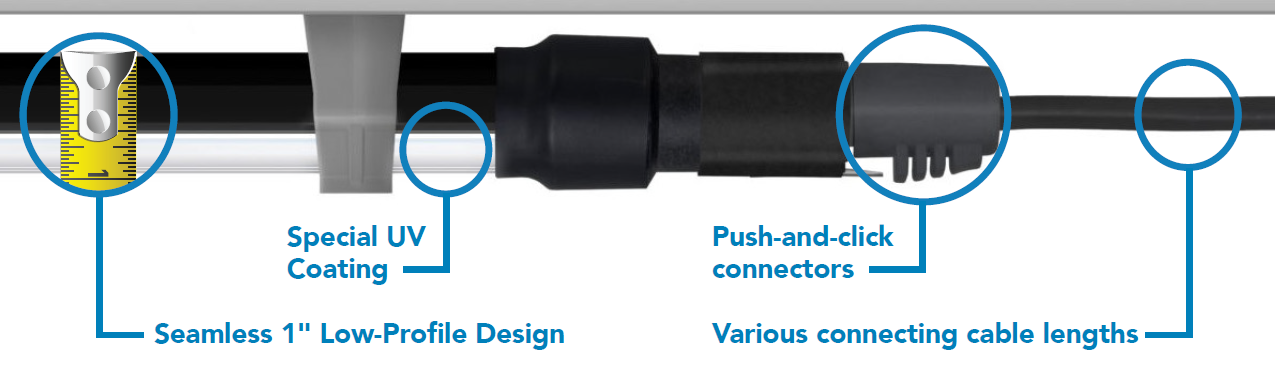

Product Design
Performance Summary
Delivered Light Output:
Up to 16,000 Lumens
Fixture Dimensions:
Length varies; Width 1.25"; Height 1.75"
Fixture Lengths:
Available in four lengths to choose from to best suit your application: 2, 4, 6 and 8 feet.
Fixture Power:
4W/ft
Mounting:
Ceiling, Wall, Strut, Magnet
Warranty
3 Years
Run Lengths:
Either two up to 90 feet each, or four up to 45 feet each; a maximum of four runs and 90 feet per run up to a total of 180 feet.
Power/Data Translator (PDT) Dimensions:
16” x 6.5” x 12.9”
Please Note:
The system needs either our ColorWash controller built in or a DMX controller provided by others. Contact G&G for project support and bill of materials configuration.
Interested in EDGE?
Let us know what you’re looking to do & we’ll help figure out the rest.
