The colored FPX series luminaires are purpose built not only to withstand the harsh environment of food processing and agriculture, but also to psychologically effect the bird’s behavior. By using red (660 nm) or blue (470 nm) LEDs to simulate the natural progression of the sun’s color spectrum over the course of the day, farmers can enhance the animal’s well being, increase production and also induce calming effects during the processing stage through the use of specific color wavelengths. With a low profile at less than 2.5″, the seamless extruded housing of the FPX is NSF and IP69K rated, making it impenetrable during wash down.
Food Processing Color IP69K LED Luminaire
Red & Blue Color Options
Specialized wavelengths that trigger certain behaviors in poultry for production and processing. Long wavelength red reduces aggression and short wavelength blue calms to reduce poultry activity.
Compact High Output Design
Engineered around the latest in LED technology to achieve a low-profile 2″ design. The end result is a strong, compact luminaire that is installation friendly with a rounded top allowing for water and debris to easily roll off during wash down.
Coextruded Coployester/Aluminum Housing
Our patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heatsinking characteristics for long lifetime.
Superior Waterproof and Chemical Resistance
A seamless copolyester outer shell provides IP69K ingress protection (1500 PSI) along with extreme chemical resistance. Designed for heavy hosedown applications and/or daily sanitation.
Made in the USA
All of G&G’s products are engineered, tested, manufactured, assembled and shipped from one facility in Clifton Park, New York with industry-leading turnaround times.

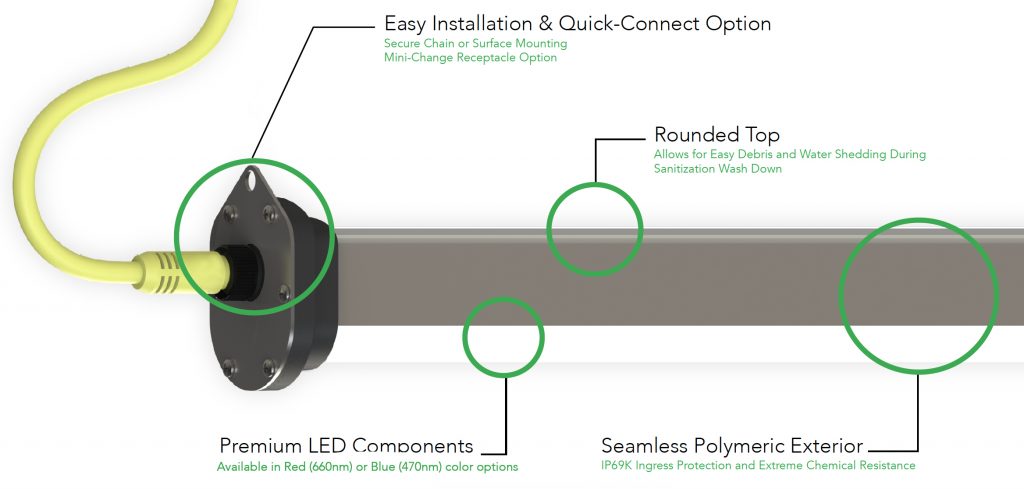

Product Design

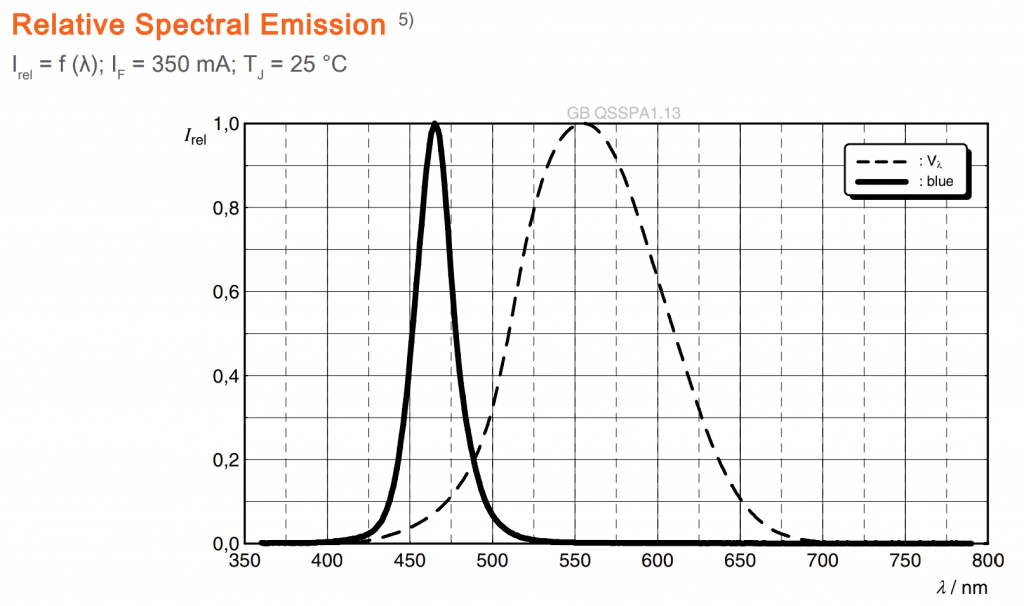

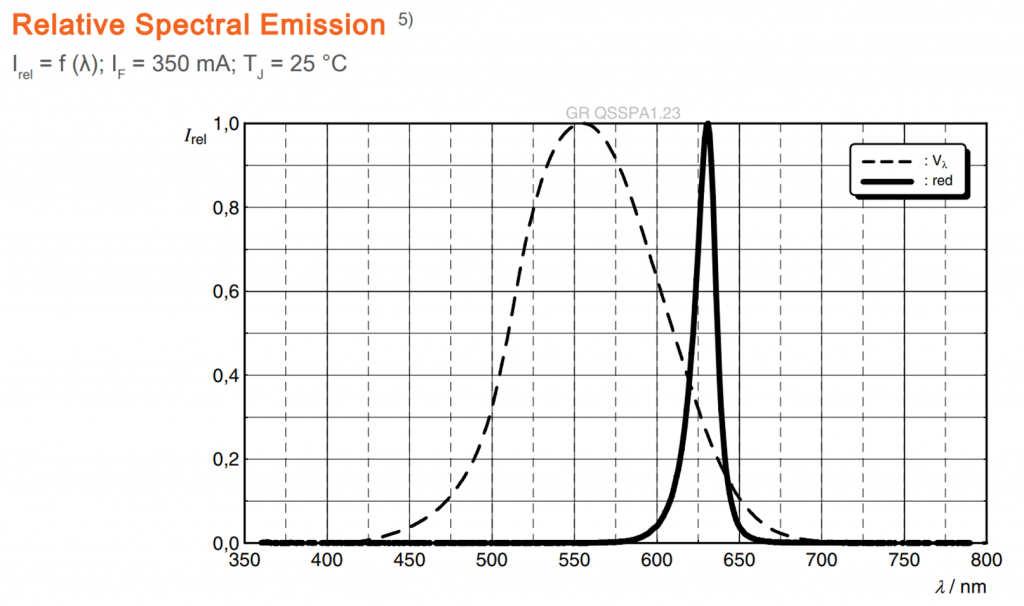

Spectral Emission
Specifications
Warranty
5 Years (see ggled.net for terms)
Mounting
Cable/Chain Mount Included; Surface Mount Optional
Dimensions
Length Varies, Width 2” x Height 2”
Voltage
20-277 VAC Input
Ambient Temperature
-20°C to 60°C
Power Data
| Length & Output | Wattage | Amps @120V | Amps @277V |
| FPX4-COLOR FPX8-COLOR | 75 150 | 0.65 1.25 | 0.27 054 |
