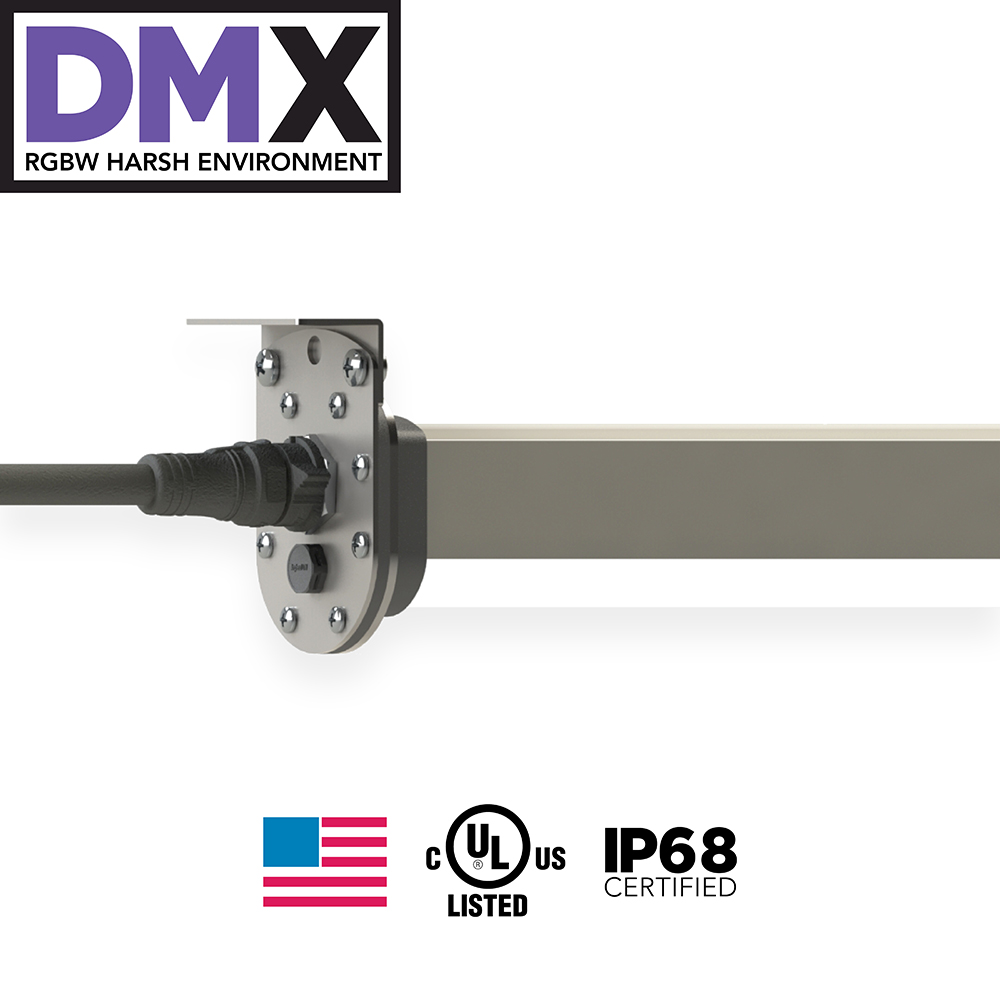

RGBW HARSH ENVIRONMENT LED LUMINAIRE

Product Features

DMX 512 Compliant

4 channel RGBW with DMX lighting control protocol for ultimate control.

Compact High Output Design

Engineered around the latest in LED technology to achieve a low-profile 2” design. The end result is a strong, compact luminaire that is installation friendly and packs a punch of LED power per channel.

Superior Waterproof and Chemical Resistance

A seamless copolyester out shell provides IP69K ingress protection (1500 PSI) along with extreme chemical resistance.

Quick Connect Cabling

Secure push and lock connectors and cabling for easy installation and the ability to daisy chain multiple fixtures.

Performance Summary

Power: 100W Per Channel (Up to 200W Instant Total Power)
Mounting: Surface or Cable Mount/small>
Dimensions: Length Varies, Width 2” x Height 2”
Voltage: 120-277 VAC Input
Secondary Optics: Available with a standard 120˚ or narrow focused 20˚ optics.

ACCESSORIES

CONNECTION CABLES

Cable Type Length Wire
HLX-JMP-1 Jumper 1ft/End-to-End 14 AWG SJOOW
HLX-JMP-4 Jumper 4ft 14 AWG SJOOW
HLX-JMP-8 Jumper 8ft 14 AWG SJOOW
HLX-LDR-8 Leader Cable 8ft 14 AWG SJOOW

POWER SUPPLIES

Power Supply Max Output Enclosure Voltage
HLX-PSU-40 40W IP67 120-277 VAC
HLX-PSU-80 80W IP67 120-277 VAC
HLX-PSU-120 120W IP67 120-277 VAC
HLX-PSU-240 240W IP67 120-277 VAC
HLX-PSU-320 320W IP67 120-277 VAC
HLX-PSU-480 480W IP67 120-277 VAC
HLX-PSU-600 600W IP67 120-277 VAC

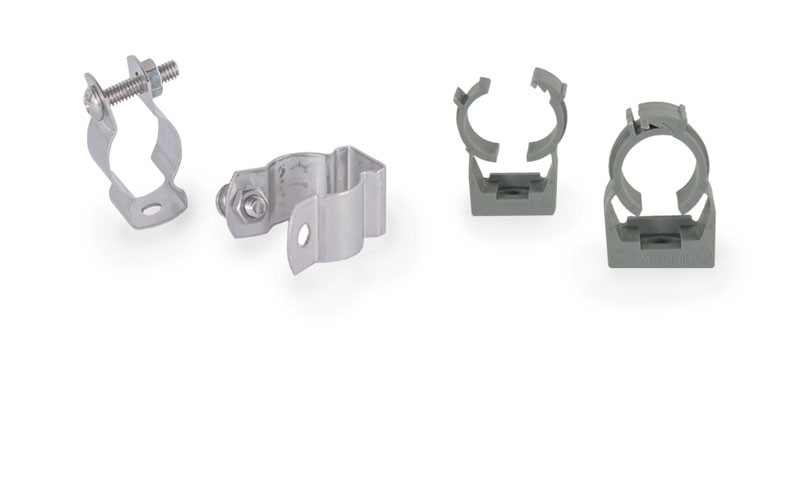

MOUNTING HARDWARE

Mounting Hardware Description
HLX-MNT-NM Non-Metalic Quick Latch
HLX-MNT-SS Stainless Steel Bolt Latch
