The HLX is a linkable 1″ low-profile luminaire that is designed specifically for hazardous locations. The seamless housing provides unparalleled chemical resistance and IP68/69K ingress protection. Certified as a Class 1, Division 2, Groups A, B, C & D and Class 2, Groups E, F & G hazardous locations lighting solution. Convenient push-and-click connectors and cabling make HLX series easy to install and daisy chain while the slim, rounded housing enables the fixtures to be aimed and mounted in almost any location with a sleek, modern appearance.
Hazardous Location Linear LED Luminaire
Extreme Protection Against Environmental Factors
In addition to C1D2 and C2D2 certification, HLX is also IP68 / IP69K, providing maximum protection against water and debris intrusion. UV and chemical resistant. IK07 impact rated.
High Output, Efficient Design in Extremely Compact Housing
Engineering around the latest in LED technology to achieve a low-profile 1” design. The end result is a strong, compact luminaire that is installation friendly and packs a punch at up to 12,000 lumens, at least 20 times the lumen density of a standard hazardous location fixture.
Reduces Inventory of Additional Components Required
There are no additional materials required to install HLX: integrated junction box and quick connect cabling alleviates need of explosion proof fittings/hubs, classified j-box and other parts with lead times and additional costs.
Made in the USA
All of G&G’s products are engineered, tested, manufactured, assembled and shipped from one facility in Clifton Park, New York with industry-leading turnaround times.
Assembly Free – Saves on Overall Cost & Time of Installation
HLX is a single piece, chemically welded enclosure without removable parts that requires no assembly, weighing ~2 lbs and can be easily installed by one person.

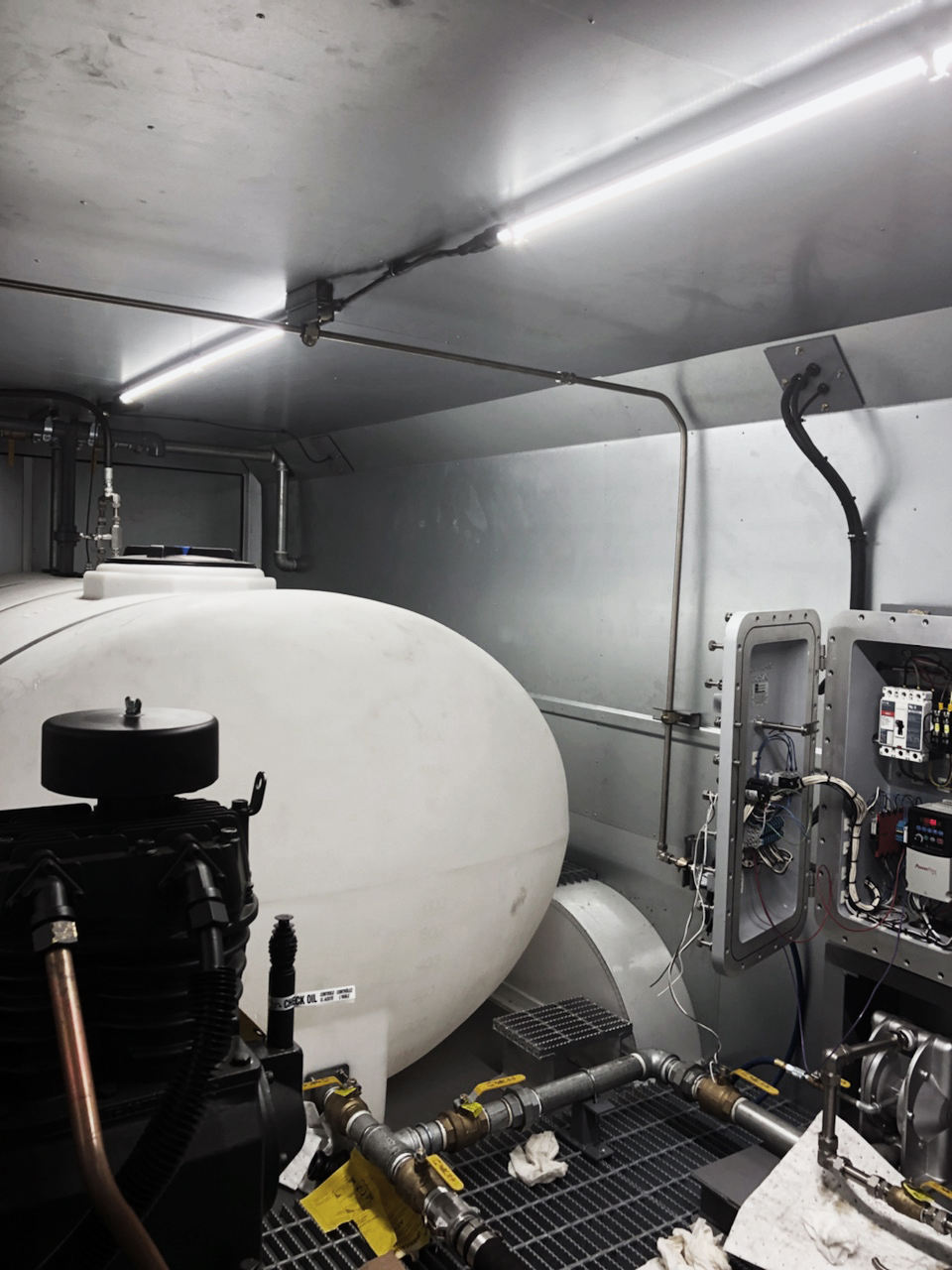

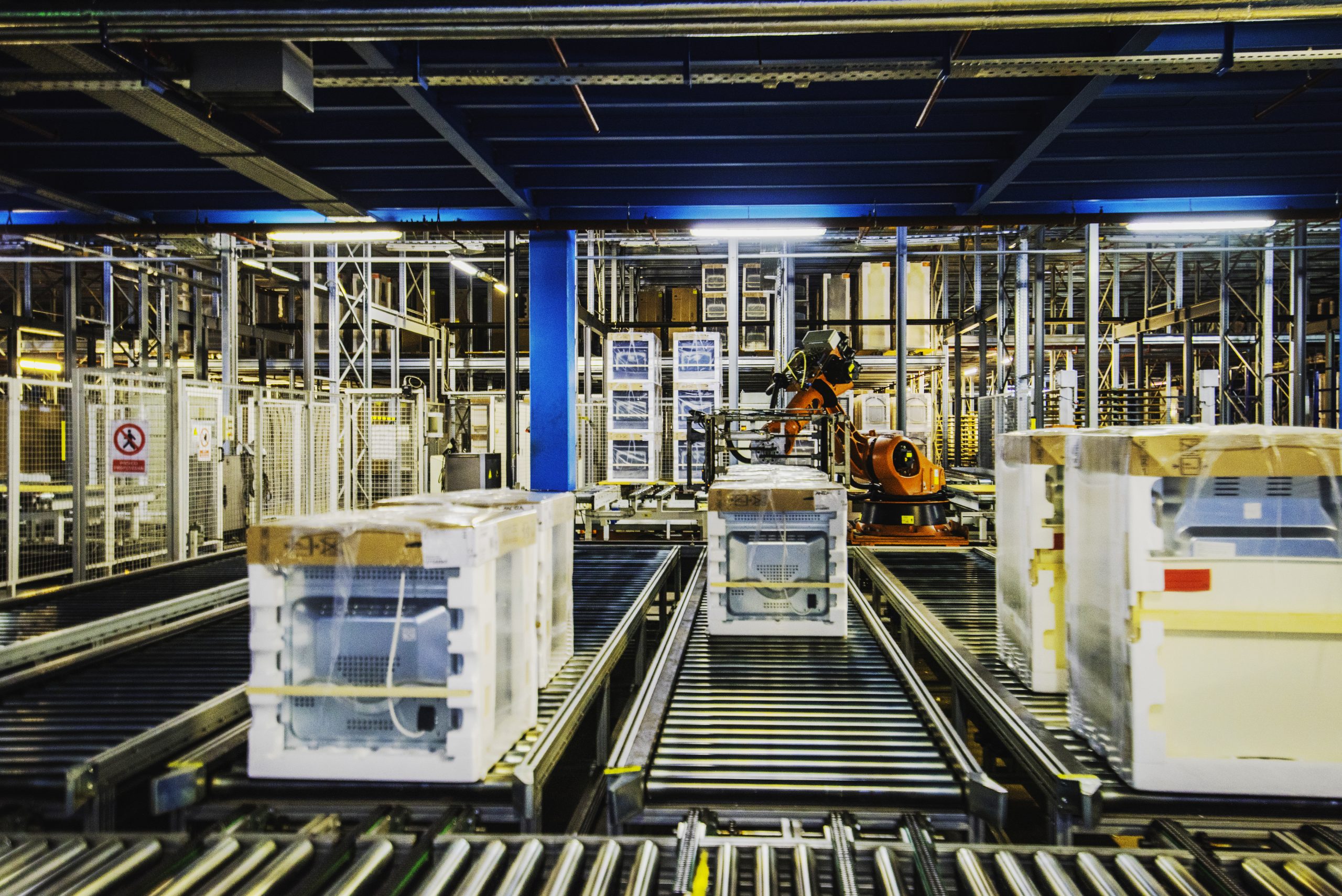

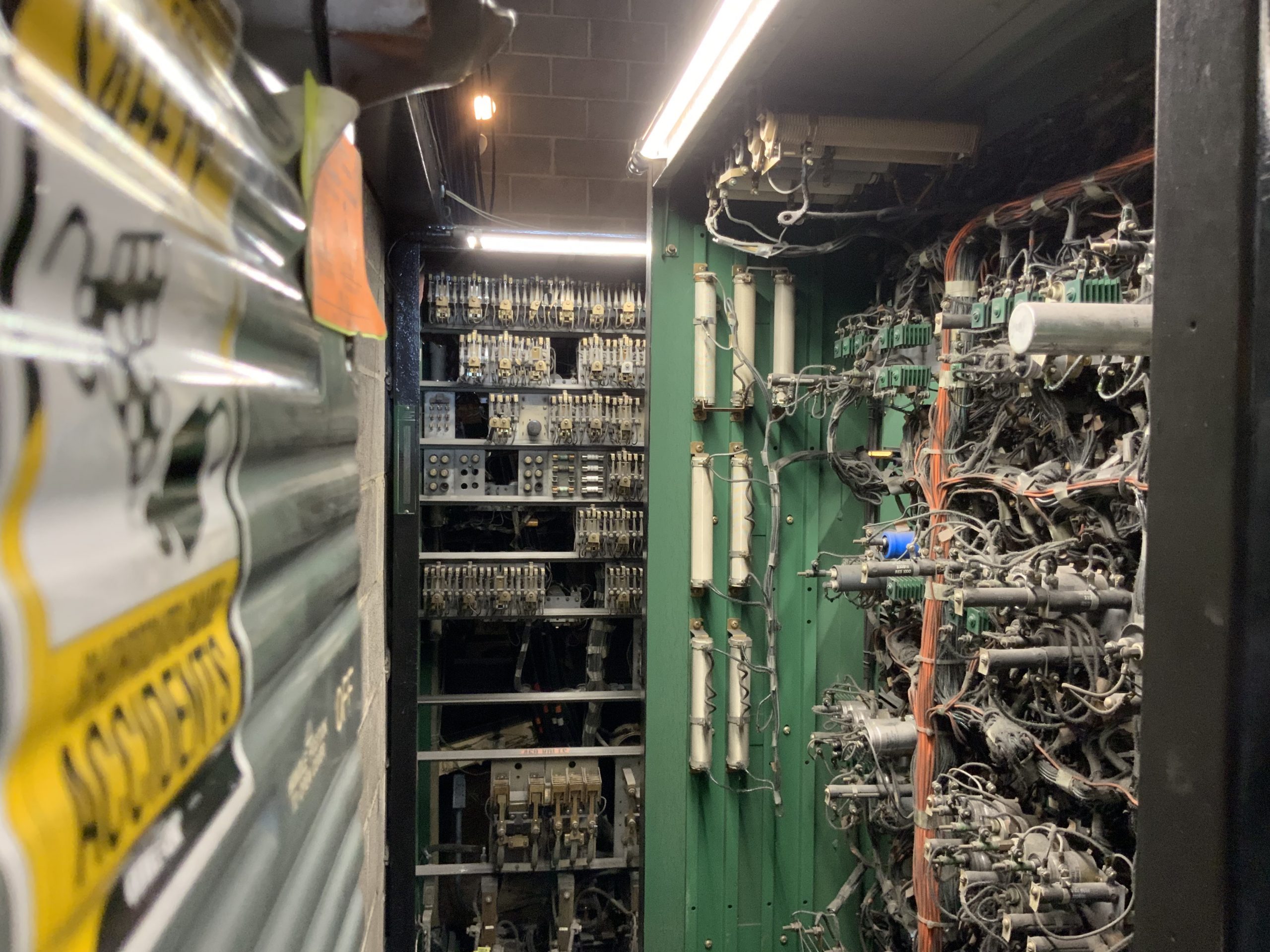

HLX Gallery

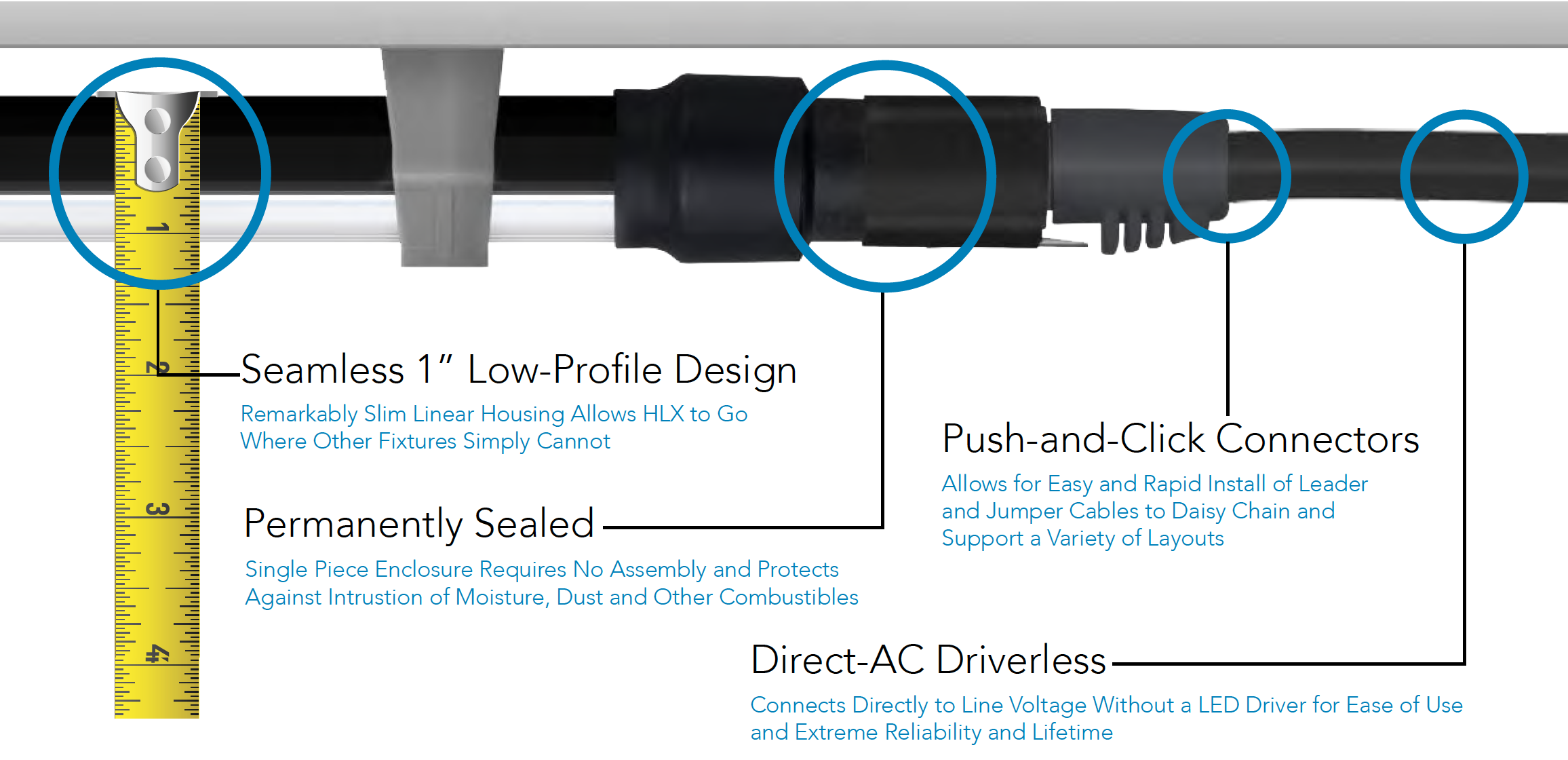

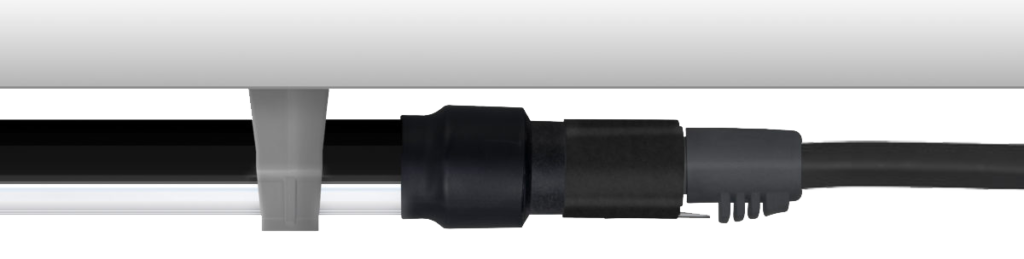

Product Design
Performance Summary
Delivered Light Output:
Up to 12,000 Lumens
Efficacy:
Up to 160 LPW
CRI:
Typical 85 CRI
CCT:
5000K & 4000K
Lifetime:
Designed to last 100,000 Hours at 25°C
Warranty:
5 Years (see ggled.net for terms)
Mounting:
Ceiling or Wall
Dimensions:
Length Varies, Width 1.25” x Height 1.75”
Run Length:
Up to 72' of luminaires (not including jumpers)
Lumen & Power Data
| Length & Output | 5000K | 4000K | Fixture Watts | fixtures supported per power supply | |||||||
| LUMENS | LUMENS PER WATT | LUMENS | LUMENS PER WATT | PSU-80 | PSU-120 | PSU-240 | PSU-320 | PSU-480 | PSU-600 | ||
| HLX8 - SO HLX6 - SO HLX4 - SO HLX2 - SO | 8,000 L 6,000 L 4,000 L 2,000 L | 160 LPW 160 LPW 160 LPW 160 LPW | 7,600 L 5,700 L 3,800 L 1,900 L | 150 LPW 150 LPW 150 LPW 150 LPW | 50 W 37 W 25 W 12 W | 1 2 3 6 | 2 3 4 8 | 4 6 8 14 | 5 7 10 20 | 8 9 13 22 | 10 10 15 22 |
| HLX8 - HO HLX6 - HO HLX4 - HO HLX2 - HO | 12,000 L 9,000 L 6,000 L 3,000 L | 150 LPW 150 LPW 150 LPW 150 LPW | 11,400 L 8,550 L 5,700 L 2,850 L | 140 LPW 140 LPW 140 LPW 140 LPW | 80 W 60 W 40 W 20 W | 0 1 1 3 | 1 1 2 4 | 2 3 5 9 | 3 4 7 13 | 5 7 9 16 | 6 8 9 16 |
