The PRX is a harsh environment rated LED luminaire designed to quickly retrofit fluorescent single pin lamps commonly found on subway and train platforms. Its 1″ low-profile design enables PRX to fit seamlessly into existing lamp holders while the direct-AC driverless technology allows complete bypassing of the conventional ballast. Upgrading to LED for transit platforms has never been easier.
Platform Retrofit Luminaire
Built for Harsh Environments
Our patented co-extruded aluminum and copolyester housing was developed specifically for harsh environments. Certified to the highest ingress and impact protection ratings, IP68 and IK07.

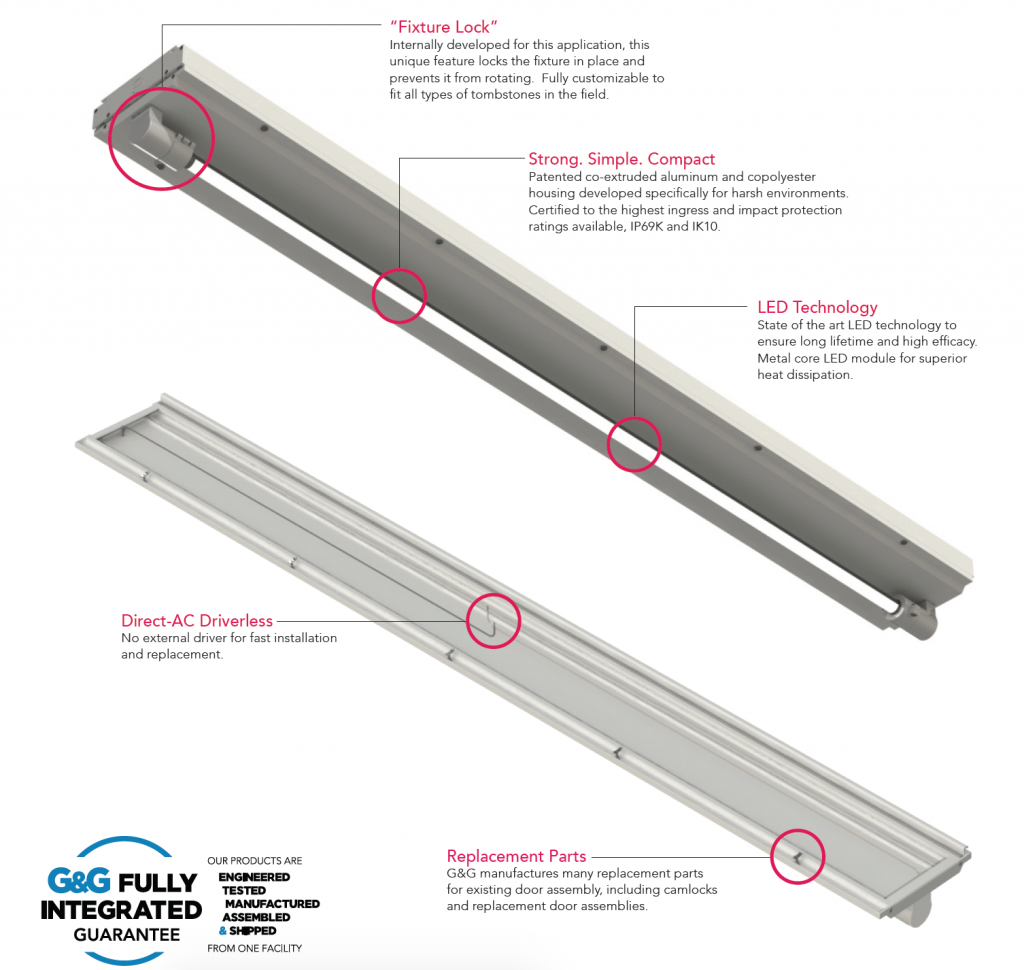

“Fixture Lock” Anti-Rotation Feature
Internally developed for this application, this unique feature locks the fixture in place and prevents it from rotating. Fully customizable to fit all types of tombstones in the field.
Long Lifetime Direct-AC Driverless
Connects directly to AC line voltage without a traditional LED driver for extreme reliability and lifetime. Metal core LED module for superior heat dissipation.
FTA Buy American Compliant
Engineered and manufactured in New York and Buy American compliant, G&G’s PRX fixture is built on quality, innovation and the latest in LED technology.
Product Design
Performance Summary
Efficacy:
120 LPW
CRI:
Typical 85 CRI
CCT:
5000K & 4000K & 3500K
Lifetime:
Designed to last 100,000 Hours at 25°C
Warranty:
10 Years (see ggled.net for terms)
Mounting:

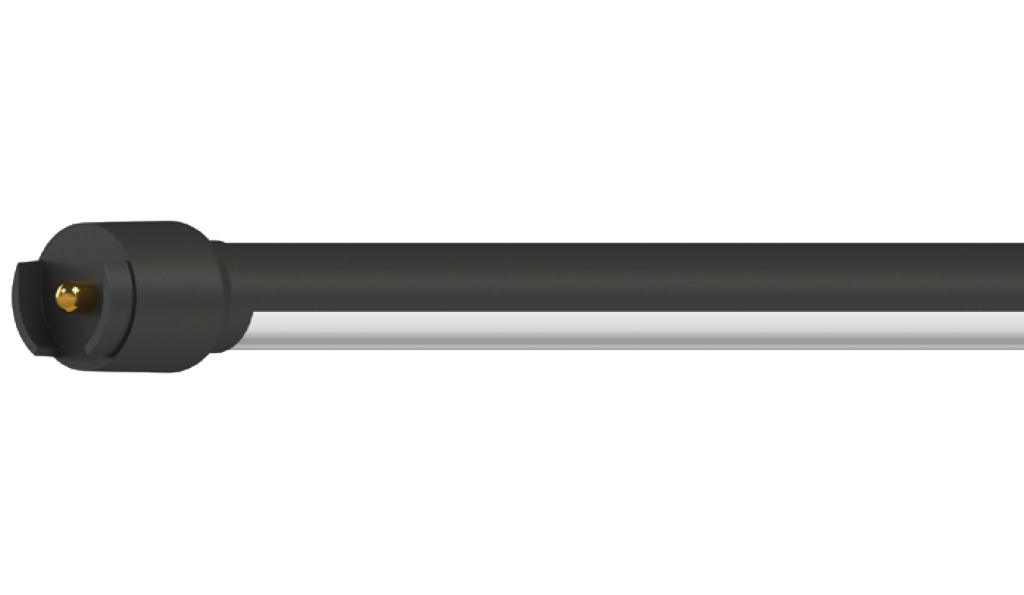

Single Pin FA8 Base (T8/T12)
Dimensions:
Length Varies, Diameter 1”
Protection Class:
IP68 Ingress & IK07 Impact
Dimming:
Yes, TRIAC Dimmable. Converter available for DMX+0-10V.
Voltage:
120 VAC or 277 VAC Input
EMI:
Tested to FCC Title 47, Part 15 Subpart B and MIL-STD-461E, RE102
Ambient Rating:
-40ºC to 60ºC
Electrical Data
| Length & Output | Lumens | Wattage | Amps @120V | Amps @277V |
| PRX4-20L PRX4-30L PRX6-30L PRX6-45L | 2000 3000 3000 4500 | 17.2W 25.8W 23.3W 35.0W | 0.14 0.22 0.19 0.29 | 0.06 0.09 0.08 0.13 |
