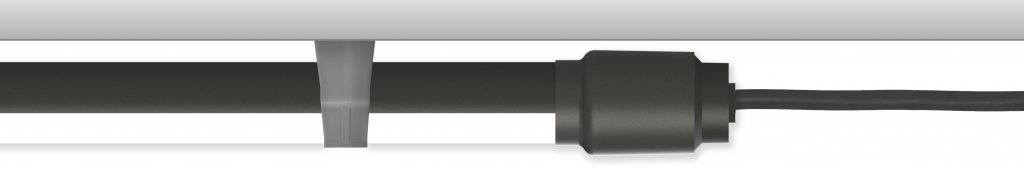

The VPX is a premium, permanently sealed LED luminaire suited for applications in challenging environments. The seamless 1″ low-profile housing enables the fixtures to be mounted in almost any location while preventing debris from accumulating inside. Its innovative driverless technology provides extreme reliability and zero maintenance. VPX goes where traditional vaportights let you down.
Low-Profile Vaporsealed LED Linear

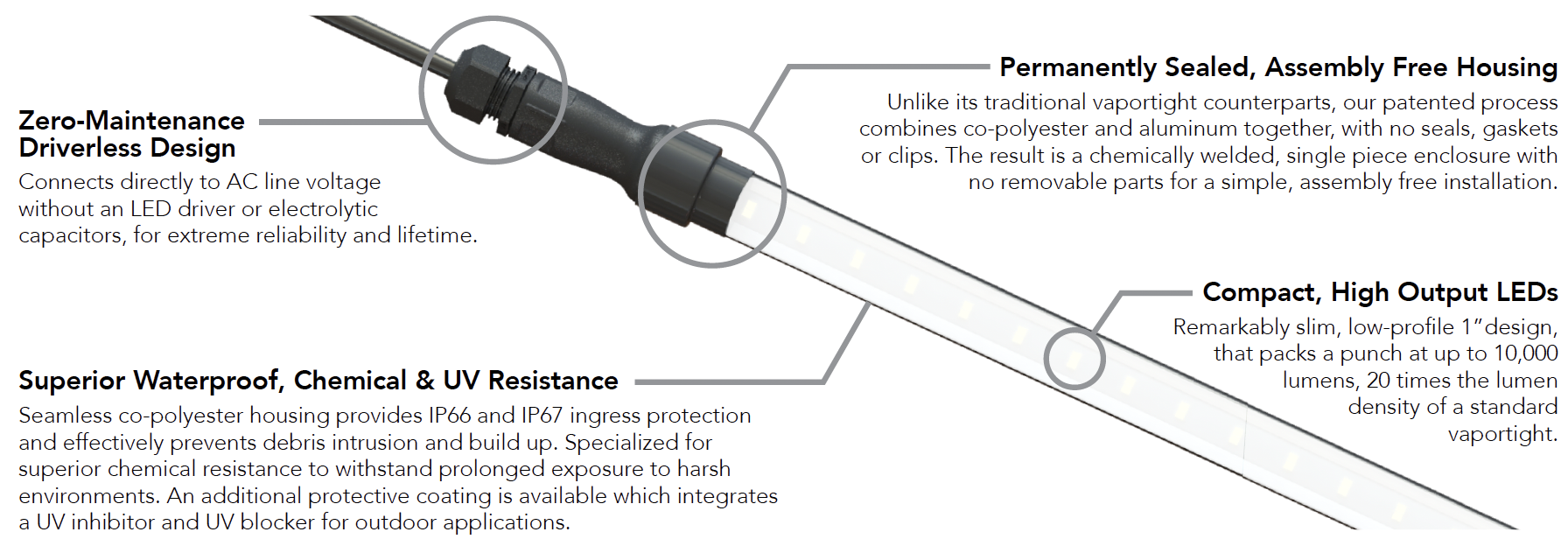

Permanently Sealed, Assembly Free Housing
Unlike its traditional vaportight counterparts, our patented process combines co-polyester and aluminum together, with no seals, gaskets or clips. The result is a chemically welded, single piece enclosure with no removable parts for a simple, assembly free installation.
Compact, Hight Output Design
Engineering around the latest in LED technology to achieve a low-profile 1” design. The end result is a strong, compact luminaire that is installation friendly and packs a punch at up to 10,000 lumens, 20 times the lumen density of a standard vaportight.
Superior Water, Chemical and UV Resistance
A seamless co-polyester housing provides IP65, IP66 and IP67 ingress protection and effectively prevents debris intrusion and build up. Specialized for superior chemical resistance to withstand prolonged exposure to harsh environments. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.
Withstands Extreme Temperatures
Built to perform in ambient temperatures up to 60ºC and as low as -40ºC where many traditional vaportights can not operate below -20º.
Maintenance Free, Driverless Design
Innovative driverless design allows the fixture to connect directly to AC line voltage without a traditional LED driver for extreme reliability and lifetime.
Made in the USA
All of G&G’s products are engineered, tested, manufactured, assembled and shipped from one facility in Clifton Park, New York with industry-leading turnaround times.
VPX Gallery
Product Design
Performance Summary
Delivered Light Output:
2,000 Lumens (VPX2) or 5,000 Lumens (VPX4) or 10,000 Lumens (VPX8)
Efficacy:
120 LPW
CRI:
Typical 85 CRI
CCT:
4000K & 5000K
Lifetime:
Designed to last 100,000 Hours at 25°C
Warranty:
5 Years
Mounting:
Ceiling or Wall
Dimensions:
Length Varies, Width 1.25” x Height 1.75” Mounted
Protection Class:
IP65, IP66, IP67
Voltage:
120 VAC or 277 VAC Input
Lens:
Copolyester, Diffused to Limit Glare & Evenly Spread Light Output
Ambient Temperature:
-40ºC to 60ºC
Surge Protection:
Built-In 4KV Surge Protection
Lumen & Power Data
| Length & Output | Lumens | Wattage | Amps @120V | Amps @277V |
| VPX2 VPX4 VPX8 | 2,000 5,000 10,000 | 16 42 84 | 0.13 0.35 0.70 | - 0.15 0.30 |
