The FPX is the most rugged, most efficient LED luminaire engineered specifically for task lighting applications in meat and poultry processing facilities. With a low profile at less than 2.5″, the seamless extruded housing is chemical resistant, NSF and IP69K rated, making it impenetrable during wash down. FPX meets all IES and USDA inspection standards for food processing illumination and is ideal for work stations, processing lines, wash down areas, de-boning stations, freezer tunnels, spiral coolers, slaughter and agricultural applications.
Food Processing IP69K Luminaire
High Output, Efficient Design in Strong, Compact Housing
Engineering around the latest in LED technology to achieve a low-profile 2.5” design. The end result is a strong, compact luminaire that is installation friendly and packs a punch at up to 20,000 lumens.
Seamless, Chemical-Resistant Fixture Housing
A seamless co-polyester outer shell provides IP69K ingress protection along with excellent chemical resistance. Designed for heavy hose down applications and daily sanitation with a rounded top that allows water and debris to easily roll off.
Cutting Edge Energy Efficiency
Incorporates the highest quality components and latest LED technology to achieve over 130 lumens per watt, nearly 30% higher efficacy than competitive product.
Made in the USA
All of G&G’s products are engineered, tested, manufactured, assembled and shipped from one facility in Clifton Park, New York with industry-leading turnaround times.
Best in Class Value
Not only a standout in quality, but also competitively priced at over 35 lumens per dollar, a figure unmatched in its class.

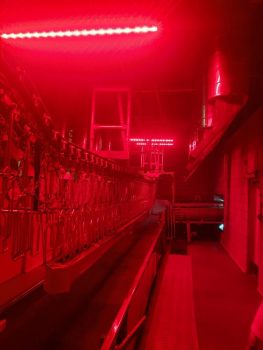

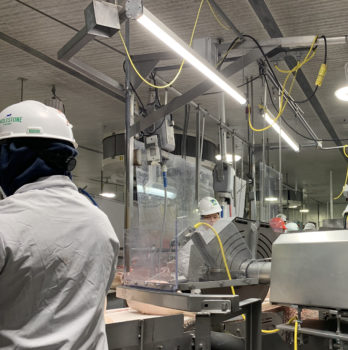

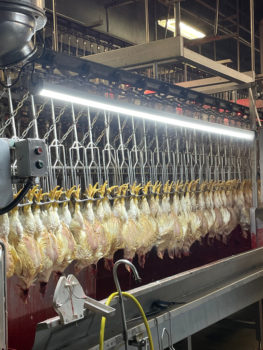

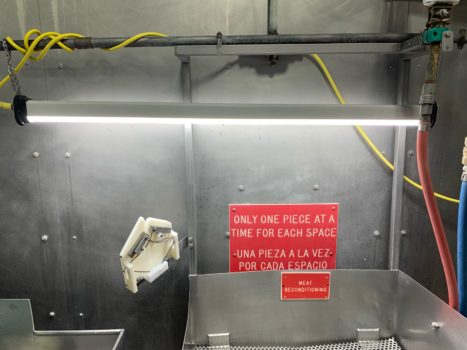

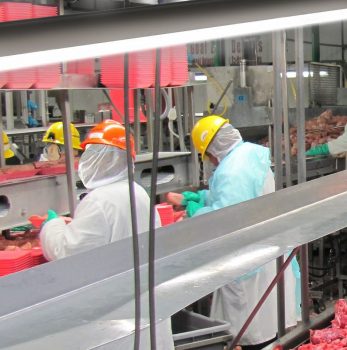

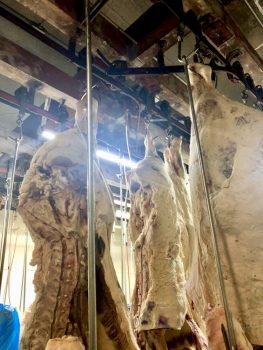

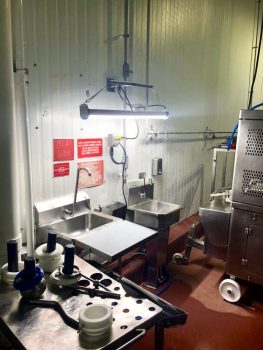

Gallery
Product Design

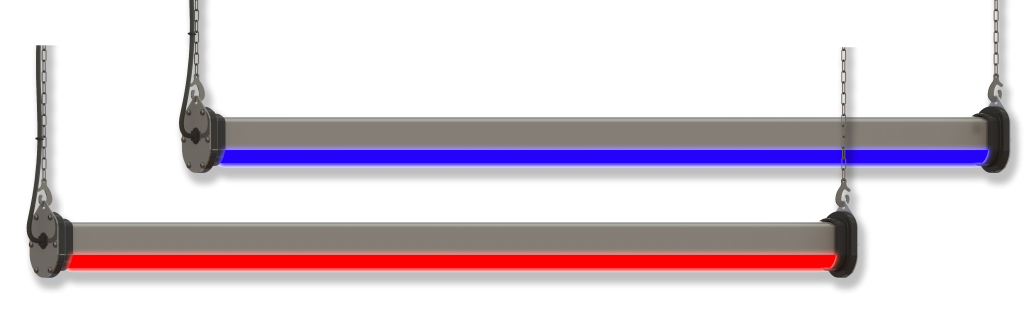

Also Available in Color Options
Performance Summary
Delivered Light Output:
Up to 20,000 Lumens
Illuminance:
290 FC at 3’ (Standard Output, 90 CRI)
Efficacy:
130+ LPW
CRI:
85+ CRI (Standard) 90+ CRI Available
CCT:
5000K & 4000K
LED L70:
140,000 Hours at 25°C
Warranty:
5 Years (see ggled.net for terms)
Mounting:
Cable/Chain Mount Included; Surface Mount Optional
Dimensions:
Length Varies, Width 2” x Height 2”
Voltage:
120-277 VAC Input
Ambient Temperature (SO):
-20°C to 60°C
Ambient Temperature (HO):
-20°C to 50°C
Lumen & Power Data
| Length & Output | Lumens | Wattage | Amps @120V | Amps @277V |
| FPX2-SO FPX2-HO FPX4-SO FPX4-HO FPX8-SO FPX8-HO | 3,750 5,000 7,500 10,000 15,000 20,000 | 28 38 55 75 110 150 | 0.23 0.32 0.46 0.64 0.92 1.25 | 0.10 0.14 0.20 0.27 0.40 0.54 |
