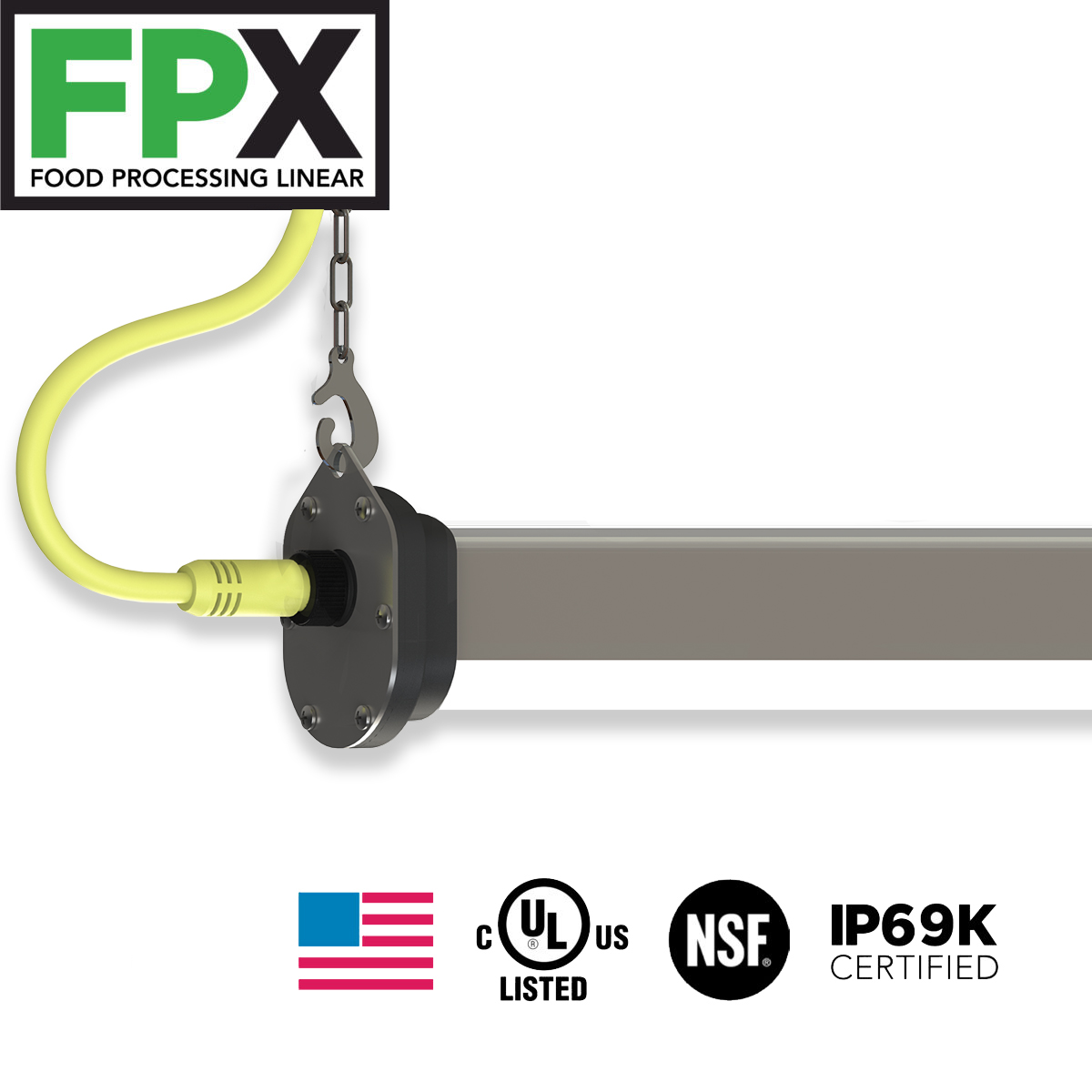

FOOD PROCESSING IP69K LUMINAIRE

Product Features

Compact High Output Design

Engineering around the latest in LED technology to achieve a low-profile 2” design. The end result is a strong, compact luminaire that is installation friendly and packs a punch at up to 20,000 lumens.

Superior Waterproof and Chemical Resistance

A seamless copolyester outer shell provides IP69K ingress protection (1500 PSI) along with extreme chemical resistance. Designed for heavy hosedown applications and/or daily sanitation.

Coextruded Copolyester/Aluminum Housing

Our patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heatsinking characteristics for long lifetime.

Quick-Connect Cabling

Secure push-and-lock connectors and cabling make FPX fixtures easy to install, operate and maintain.

Performance Summary

Delivered Light Output: Up to 20,000 Lumens
Illuminance: 290 FC at 3’ (Standard Output, 90 CRI)
Efficacy: 120+ LPW
CRI: 85+ CRI (Standard) 90+ CRI Available
CCT: 5000K -or- 4000K
Lifetime: Designed to last 75,000 Hours at 25°C
Warranty: 5 Years (see ggled.net for terms)
Mounting: Surface or Cable Mount, 316SS
Dimensions: Length Varies, Width 2” x Height 2”
Voltage: 120-277 VAC Input
Ambient Temperature: -20°C to 40°C

ACCESSORIES

CONNECTION CABLES

Cable Type Length Wire
HLX-JMP-1 Jumper 1ft/End-to-End 14 AWG SJOOW
HLX-JMP-4 Jumper 4ft 14 AWG SJOOW
HLX-JMP-8 Jumper 8ft 14 AWG SJOOW
HLX-LDR-8 Leader Cable 8ft 14 AWG SJOOW

POWER SUPPLIES

Power Supply Max Output Enclosure Voltage
HLX-PSU-40 40W IP67 120-277 VAC
HLX-PSU-80 80W IP67 120-277 VAC
HLX-PSU-120 120W IP67 120-277 VAC
HLX-PSU-240 240W IP67 120-277 VAC
HLX-PSU-320 320W IP67 120-277 VAC
HLX-PSU-480 480W IP67 120-277 VAC
HLX-PSU-600 600W IP67 120-277 VAC

MOUNTING HARDWARE

Mounting Hardware Description
HLX-MNT-NM Non-Metalic Quick Latch
HLX-MNT-SS Stainless Steel Bolt Latch
