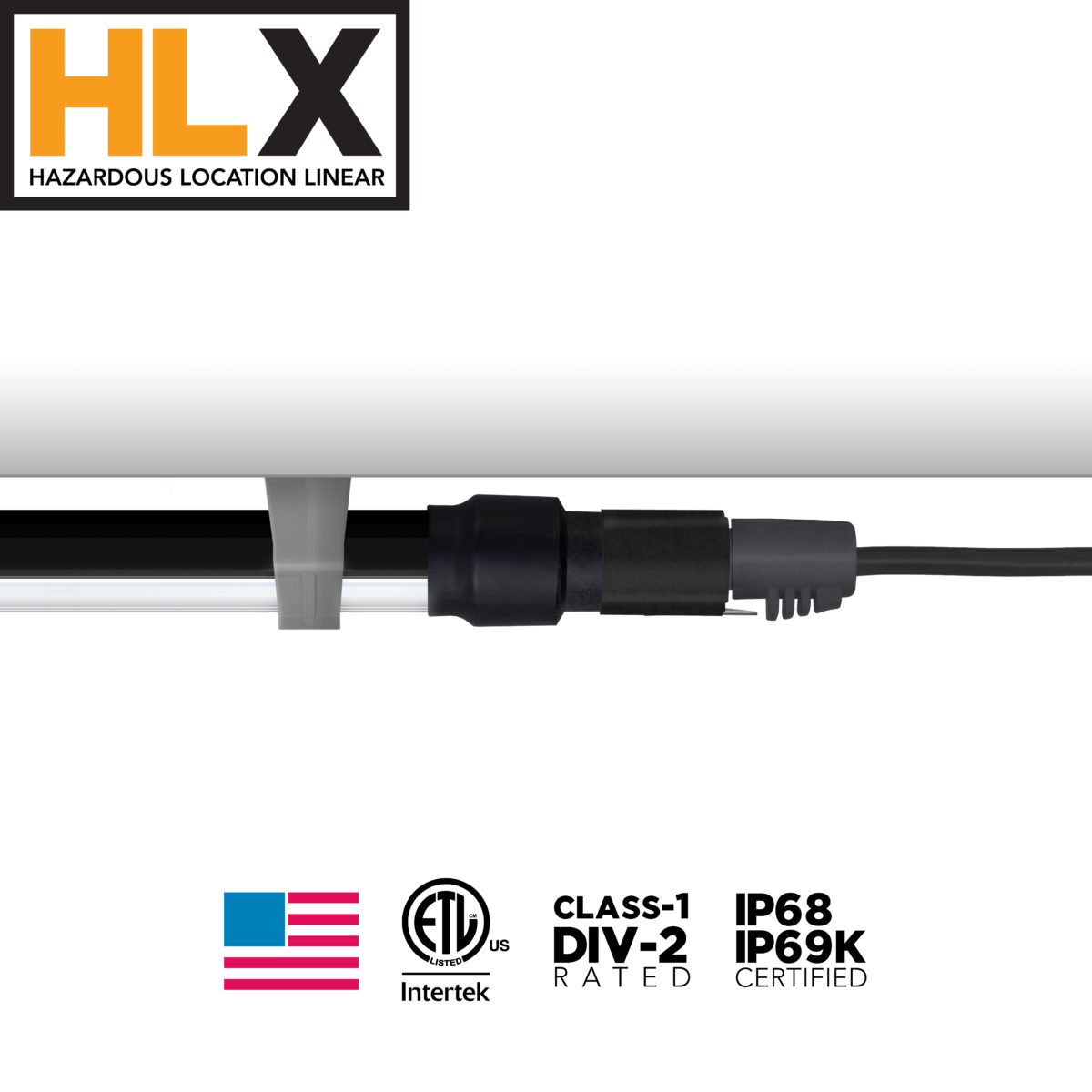

HAZARDOUS LOCATION LINEAR LED LUMINAIRE

Product Features

Class 1, Division 2 Rated & Class 2, Division 2

Certified for Hazardous Locations Class 1, Division 2 Groups A, B, C, & D and Class 2, Division 2 Groups E, F & G

Easy to Install Quick-Connect Cabling

Convenient push-and-click connectors and cabling make HLX Series fixtures easy to install and daisy chain. Heavy Duty Low Smoke Zero Halogen Cabling.

Low-Profile

1” round patented, innovative linear housing produces a remarkably slim profile allowing the HLX series to go where other fixtures simply cannot.

Superior Ingress Protection & Chemical Resistance

Seamless polymeric outer shell provides IP68/IP69K ingress protection and is specialized for superior chemical resistance.

Performance Summary

Delivered Light Output: Up to 12,000 Lumens
Efficacy: Up to 40 LPW
CRI: Typical 85 CRI
CCT: 5000K & 4000K
Lifetime: Designed to last 100,000 Hours at 25°C
Warranty: 5 Years (see ggled.net for terms)
Mounting: Ceiling or Wall
Dimensions: Length Varies, Width 1.25” x Height 1.75”
Run Length: Up to 72′ of luminaires (not including jumpers)

ACCESSORIES

CONNECTION CABLES

Cable Type Length Wire
HLX-JMP-1 Jumper 1ft/End-to-End 14 AWG SJOOW
HLX-JMP-4 Jumper 4ft 14 AWG SJOOW
HLX-JMP-8 Jumper 8ft 14 AWG SJOOW
HLX-LDR-8 Leader Cable 8ft 14 AWG SJOOW

POWER SUPPLIES

Power Supply Max Output Enclosure Voltage
HLX-PSU-40 40W IP67 120-277 VAC
HLX-PSU-80 80W IP67 120-277 VAC
HLX-PSU-120 120W IP67 120-277 VAC
HLX-PSU-240 240W IP67 120-277 VAC
HLX-PSU-320 320W IP67 120-277 VAC
HLX-PSU-480 480W IP67 120-277 VAC
HLX-PSU-600 600W IP67 120-277 VAC

MOUNTING HARDWARE

Mounting Hardware Description
HLX-MNT-NM Non-Metalic Quick Latch
HLX-MNT-SS Stainless Steel Bolt Latch
