Product Features

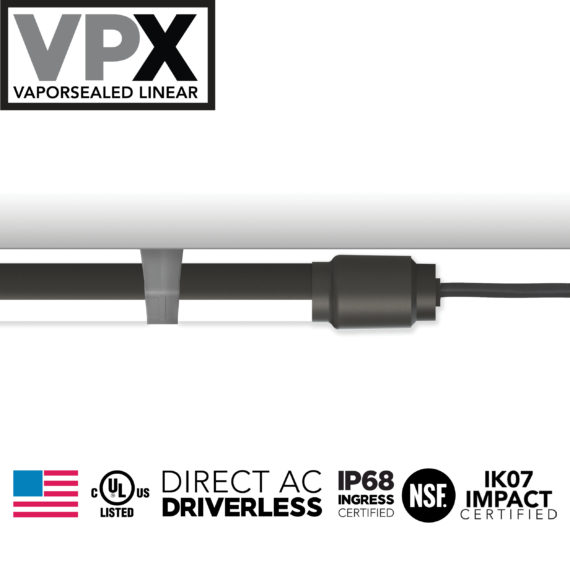

Compact Low-Profile Design

1” round patented linear housing provides a remarkably slim low profile allowing installation in almost any application. The design is lightweight, incredibly easy to mount and creates a modern, sleek result.

Maintenance-Free Driverless Design

Connects directly to AC line voltage without an LED driver or electrolytic capacitors, for extreme reliability and lifetime. Requires zero maintenance.

Superior Waterproof Chemical & UV Resistance

Seamless polymeric outer shell provides IP68 ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.

Coextruded Copolyester/Aluminum Housing

Our patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heatsinking characteristics for long lifetime.

Performance Summary

Delivered Light Output: 5,000 Lumens (VPX4) or 10,000 Lumens (VPX8)
Efficacy: 130 LPW
CRI: Typical 85 CRI
CCT: 4000K & 5000K
Lifetime: Designed to last 100,000 Hours at 25°C
Warranty: 5 Years
Mounting: Ceiling or Wall
Dimensions: Length Varies, Width 1.25” x Height 1.75” Mounted
Protection Class: IP68
Dimming: Yes, TRIAC Dimmable
Voltage: 120 VAC or 277 VAC Input
Lens: Copolyester, Diffused to Limit Glare & Evenly Spread Light Output
Ambient Temperature: -40ºC to 60ºC
Surge Protection: Built-In 6KV Surge Protection


Mounting Hardware Description
VPX-MNT-NM Non-Metalic Quick Latch
VPX-MNT-SS Stainless Steel Bolt Latch
