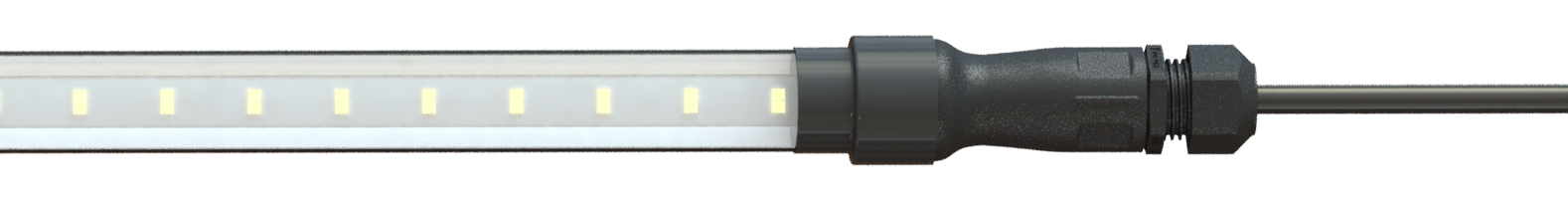

Easy to Install Push-and-Screw Connector System

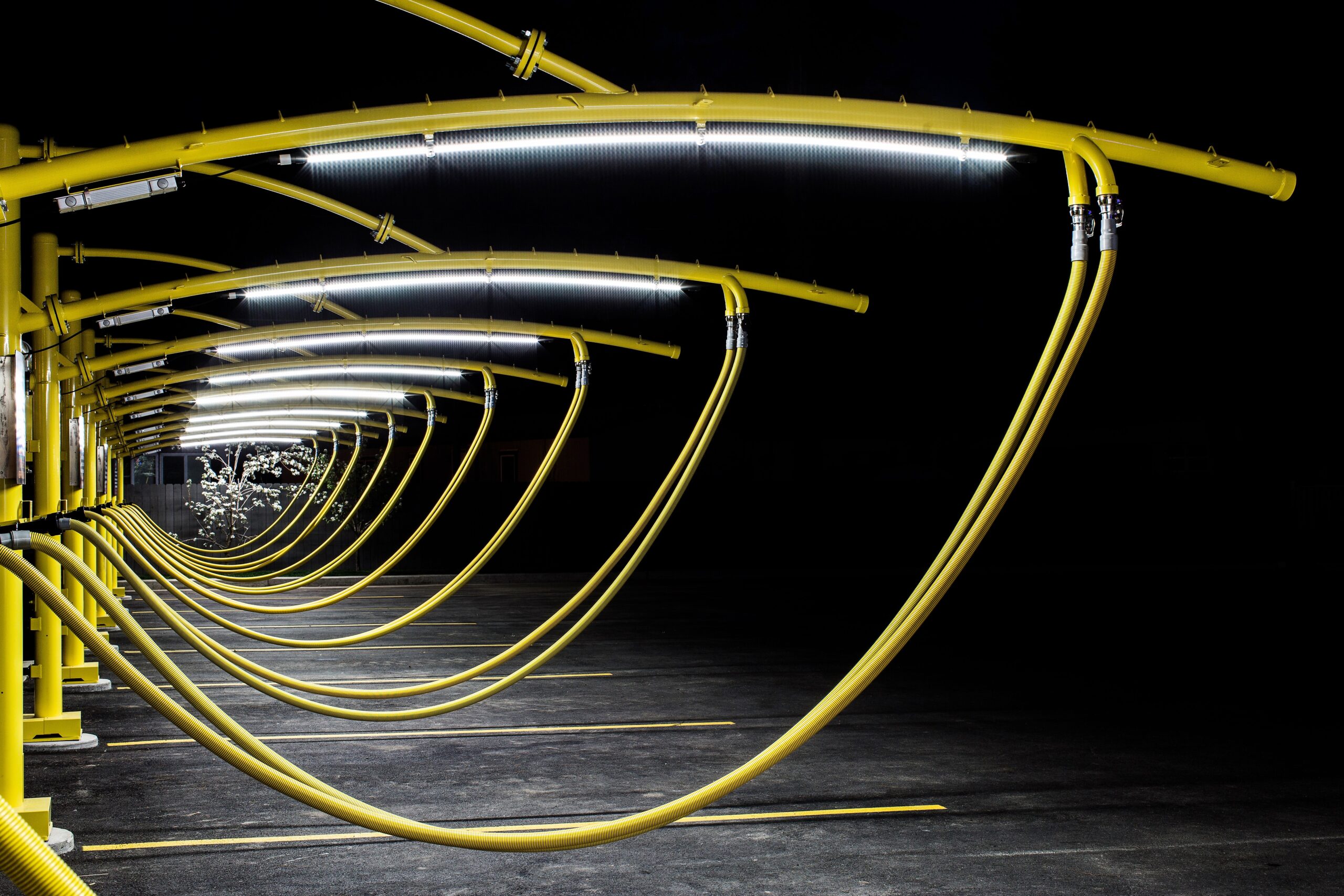

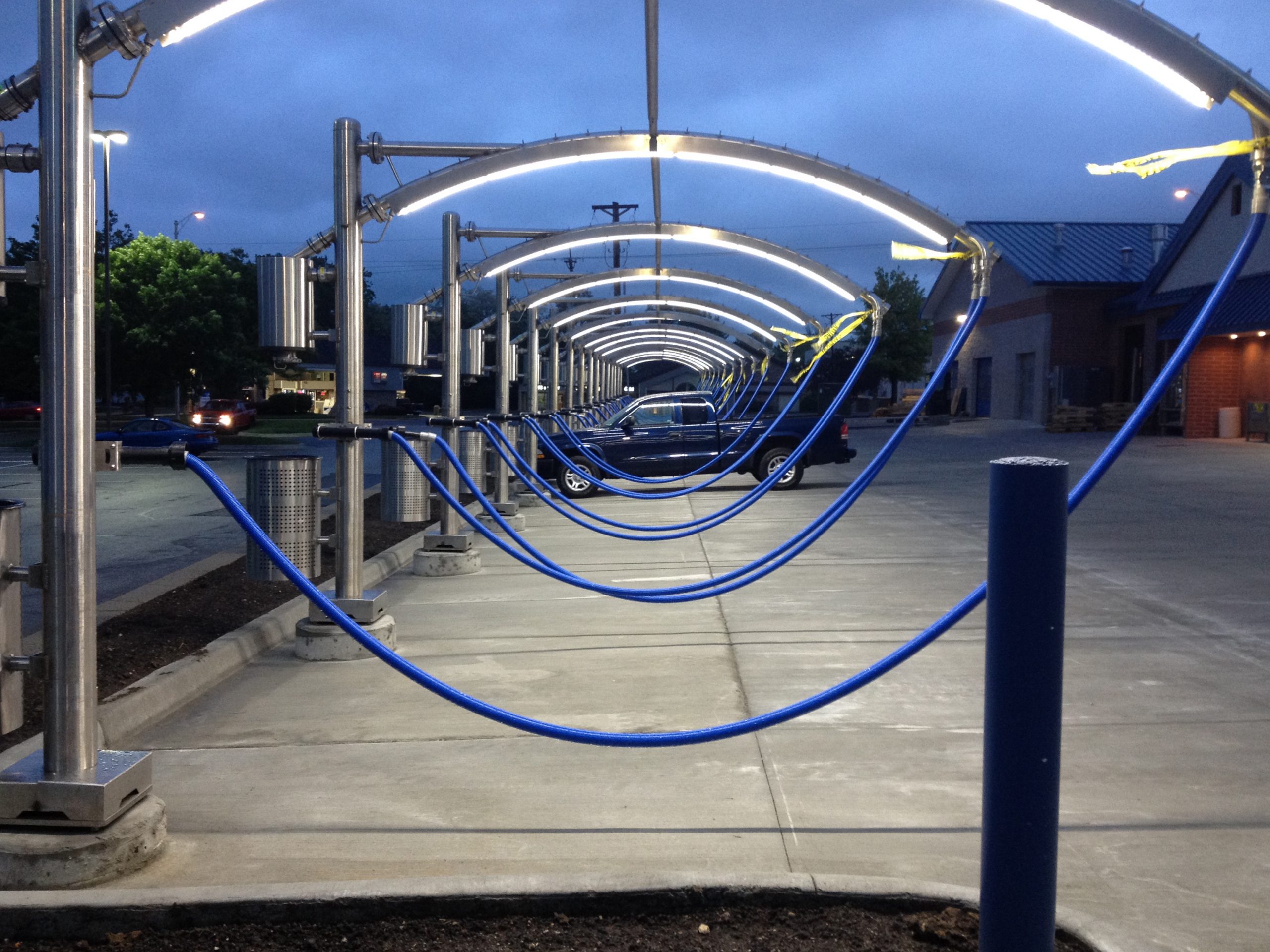

Convenient push-and-screw connector makes VAC series fixtures easy to install and housing that is hand-bendable allows easy forming to radius of vacuum arch.

Co-extruded Co-polyester and Aluminum Housing

Our patented process combines co-polyester and aluminum together, with no seals or gaskets. The result is an IP67-rated single piece housing with excellent heatsinking characteristics for long lifetime, as well as the ability to bend and flex for maximum mounting versatility. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.

Made in the USA

All of G&G’s products are engineered, tested, manufactured, assembled and shipped from one facility in Clifton Park, New York with industry-leading turnaround times.

Maintenance Free, Driverless Design

Innovative driverless design allows the fixture to connect directly to AC line voltage without a traditional LED driver for extreme reliability and lifetime. Requires zero maintenance.

Product Design

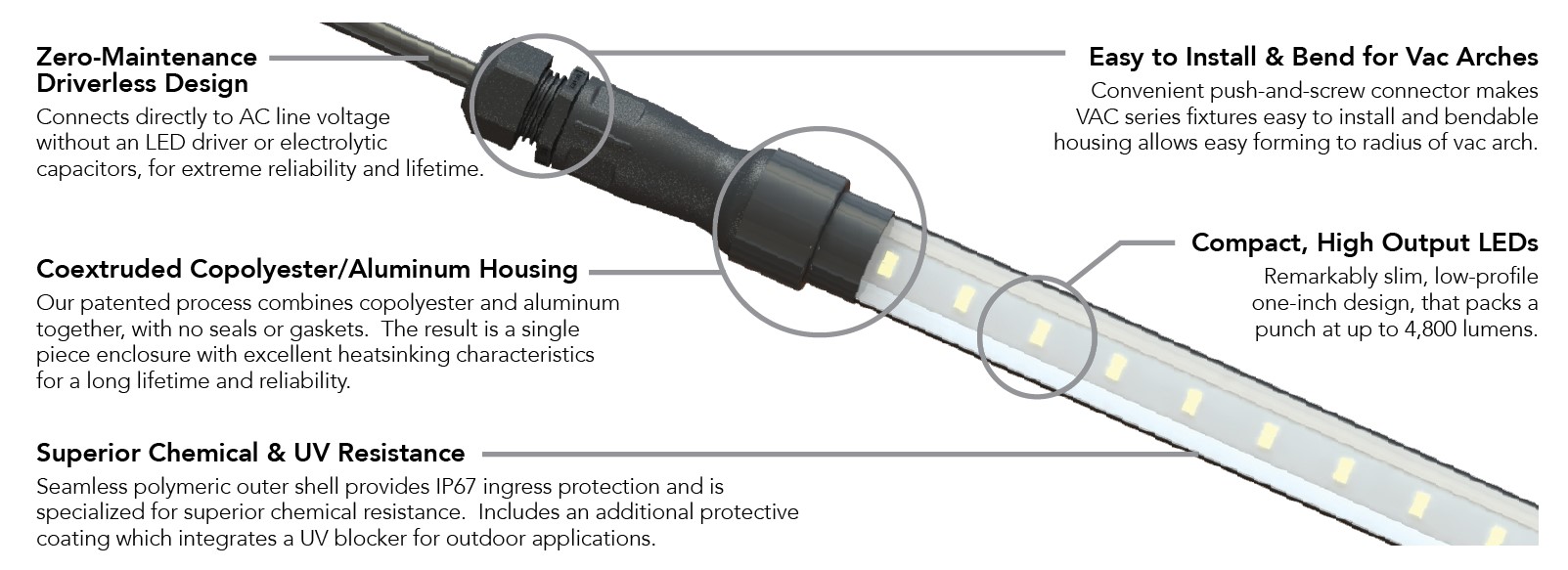

VAC Product Features: Zero-Maintenance Driverless Design, Coextruded Copolyester/Aluminum Housing, Superior Chemical & UV Resistance, Easy to Install & Bend for Vac Arches, Compact, High Output LEDs





Ready to order?

Performance Summary

Delivered Light Output: Up to 4,800 Lumens
Efficacy: 130 LPW
CRI: Typical 85 CRI
CCT: 5000K & 4000K
Lifetime: Designed to last 100,000 Hours at 25°C
Warranty: 5 Years (See ggled.net for Terms)
Mounting: Ceiling or Wall
Dimensions: Length Varies, Width 1.25” x Height 1.75”
Protection Class: IP67
Voltage: 120 VAC or 277 VAC Input
Surge Protection: Built-In 4KV Surge Protection

Lumen & Power Data

Length & OutputLumensWattageAmps @120VAmps @277V
VAC4
VAC6
VAC8
2,400
3,600
4,800
18
27
36
0.150
0.225
0.300
0.065
0.097
0.130
